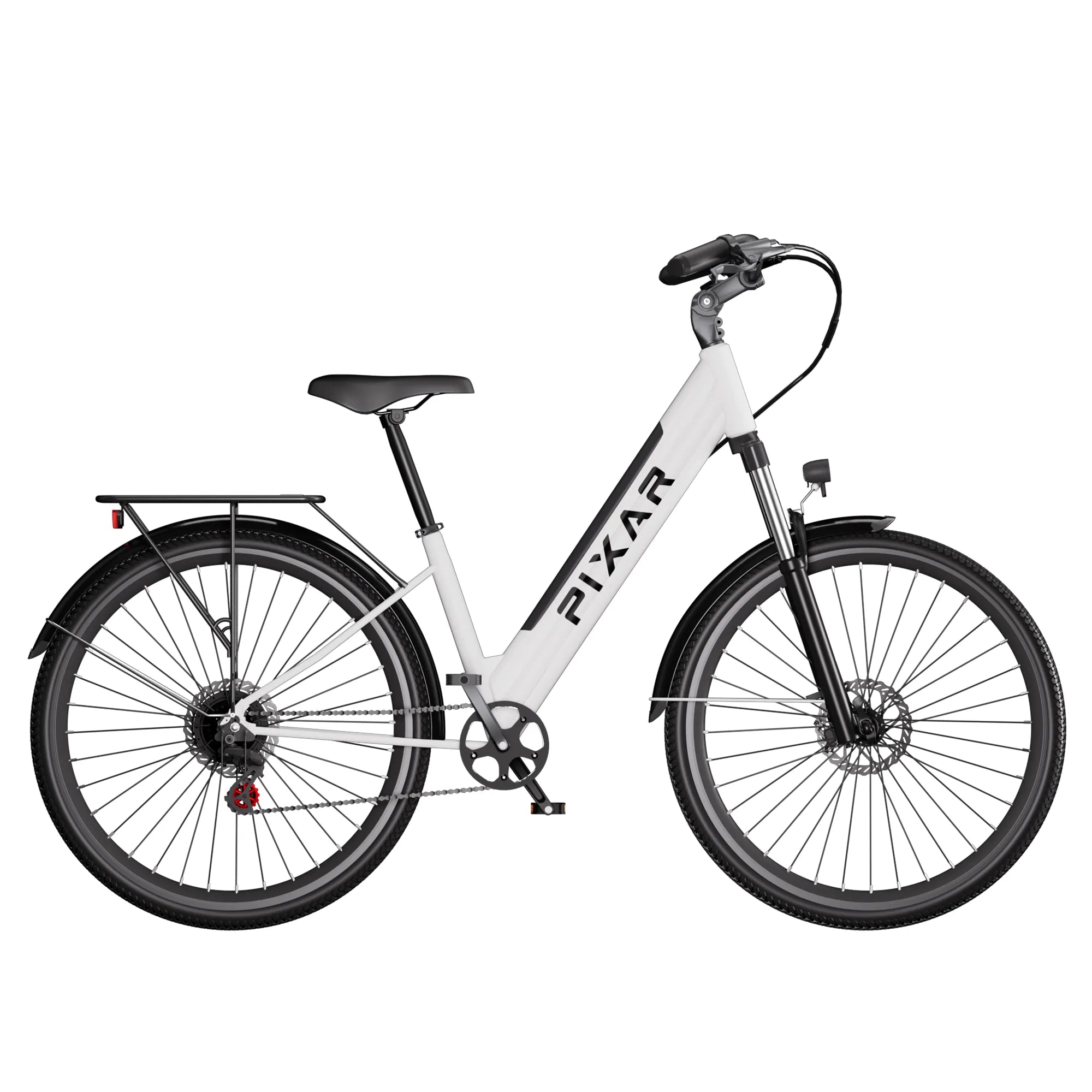

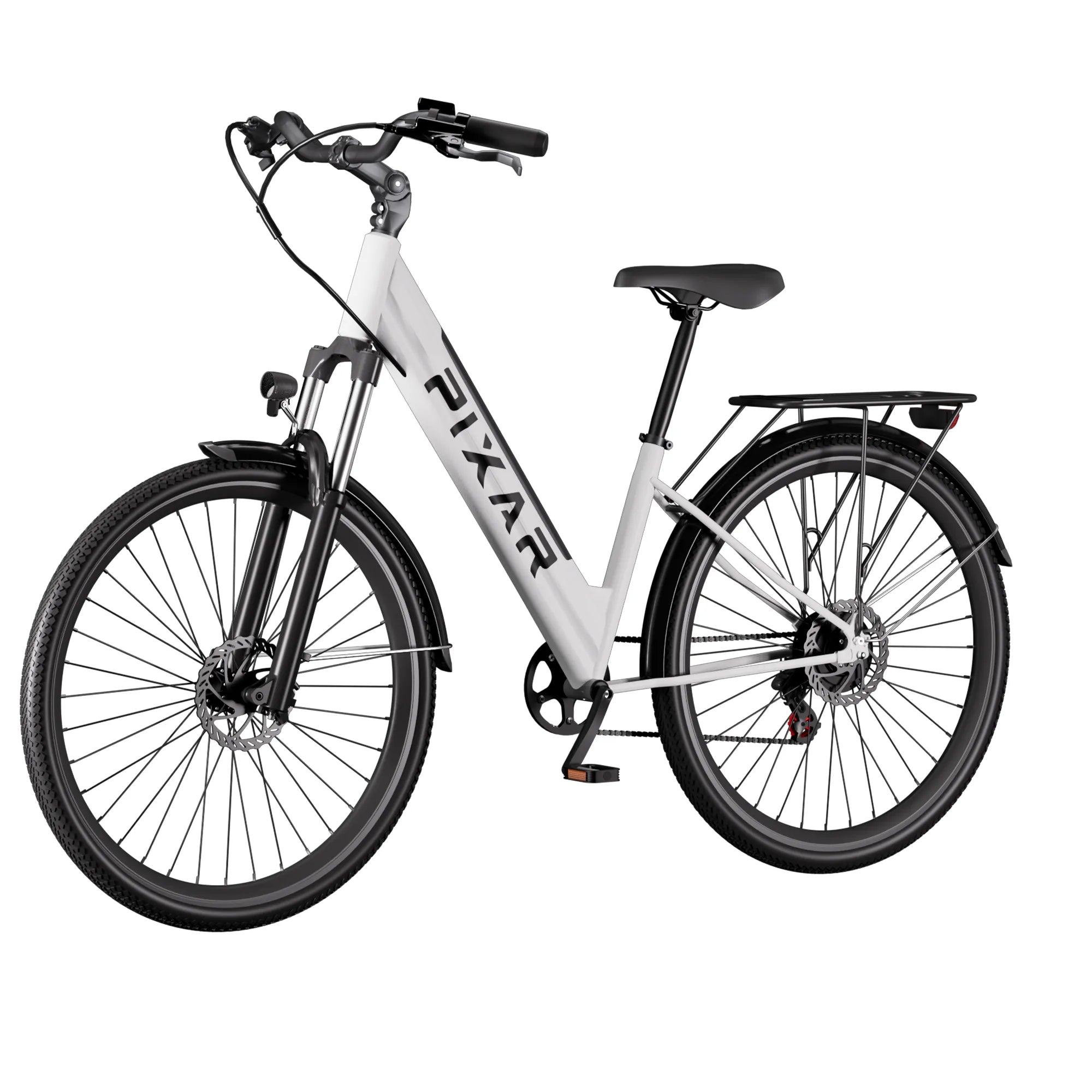

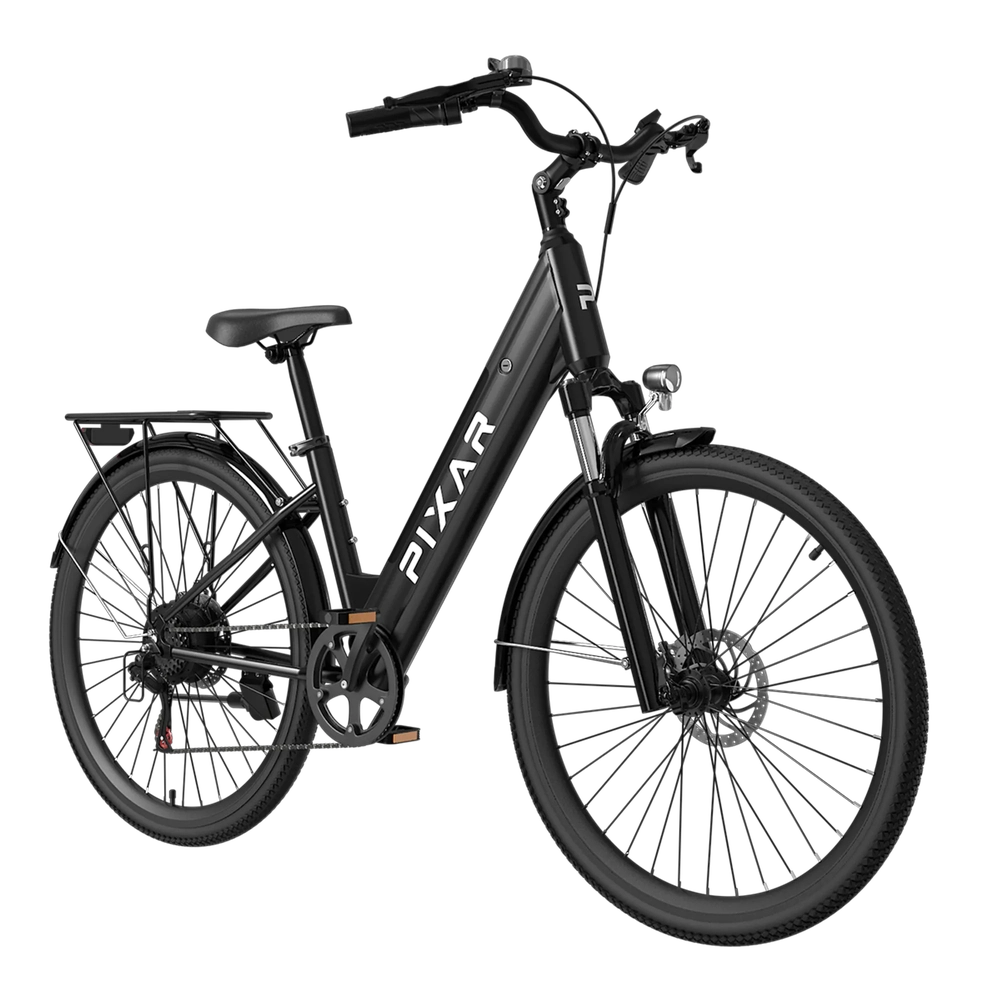

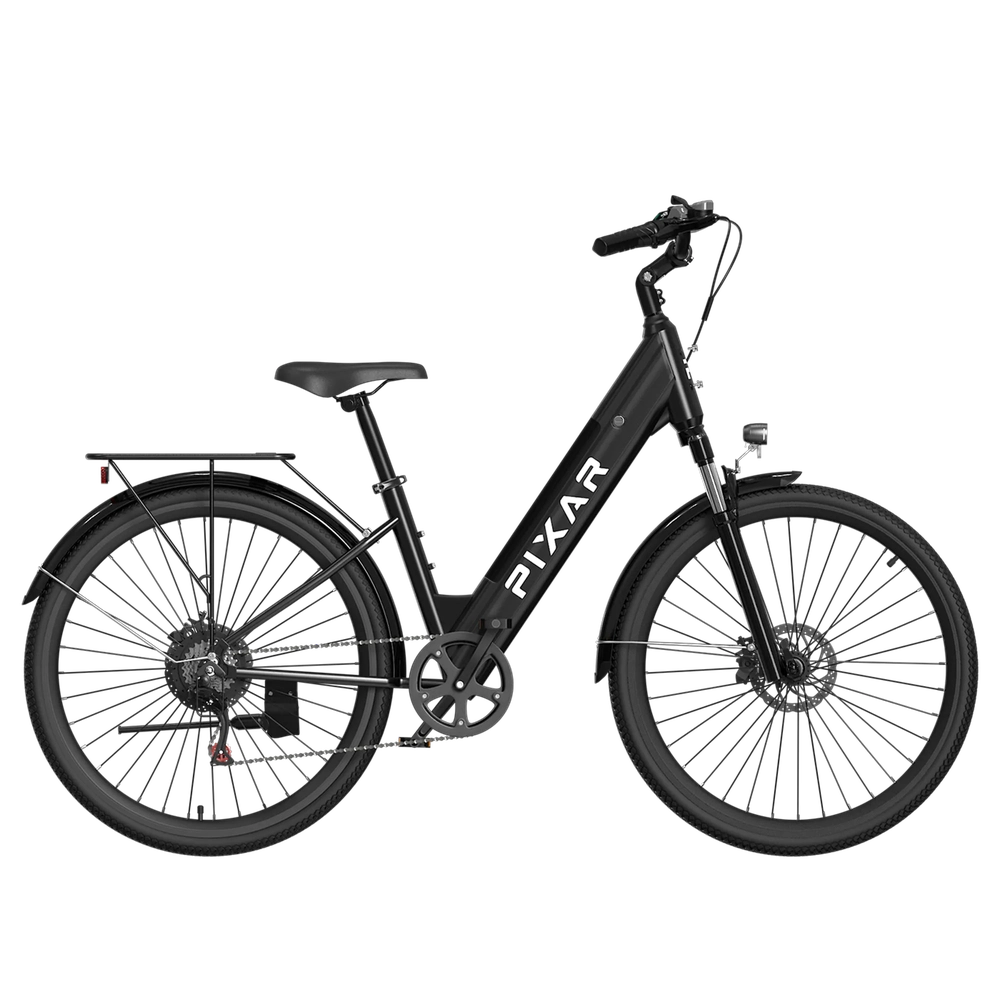

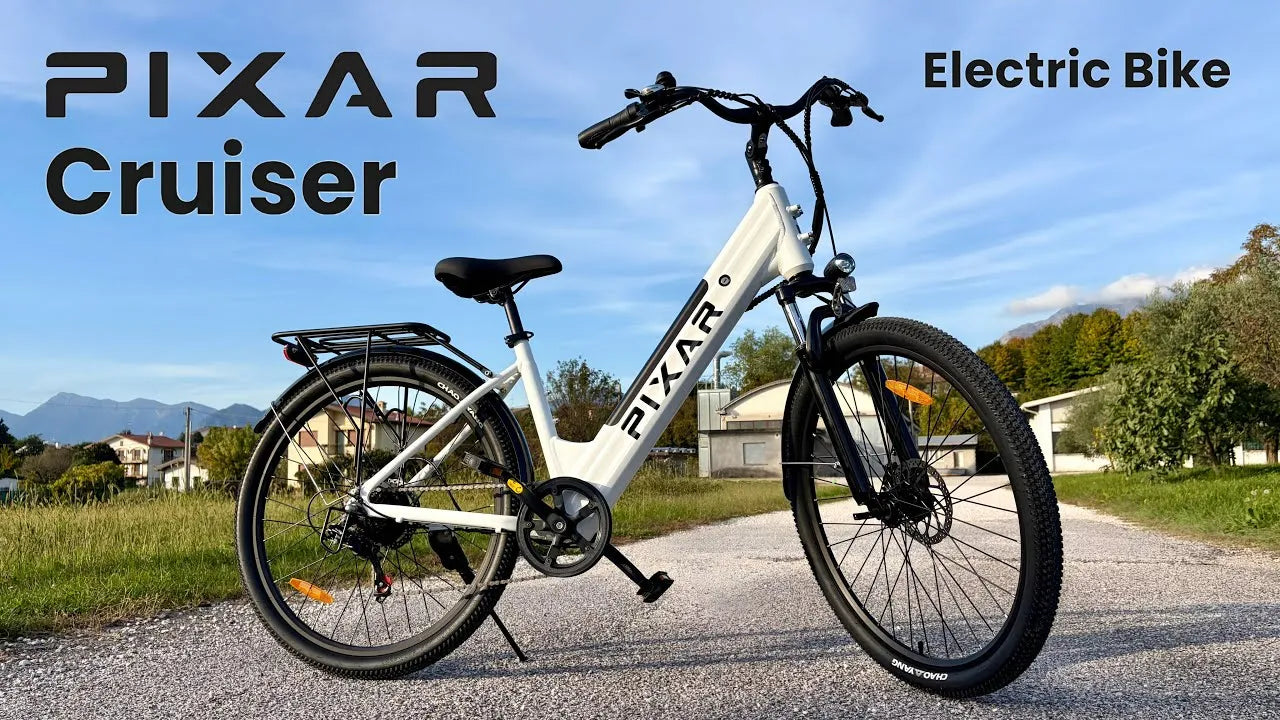

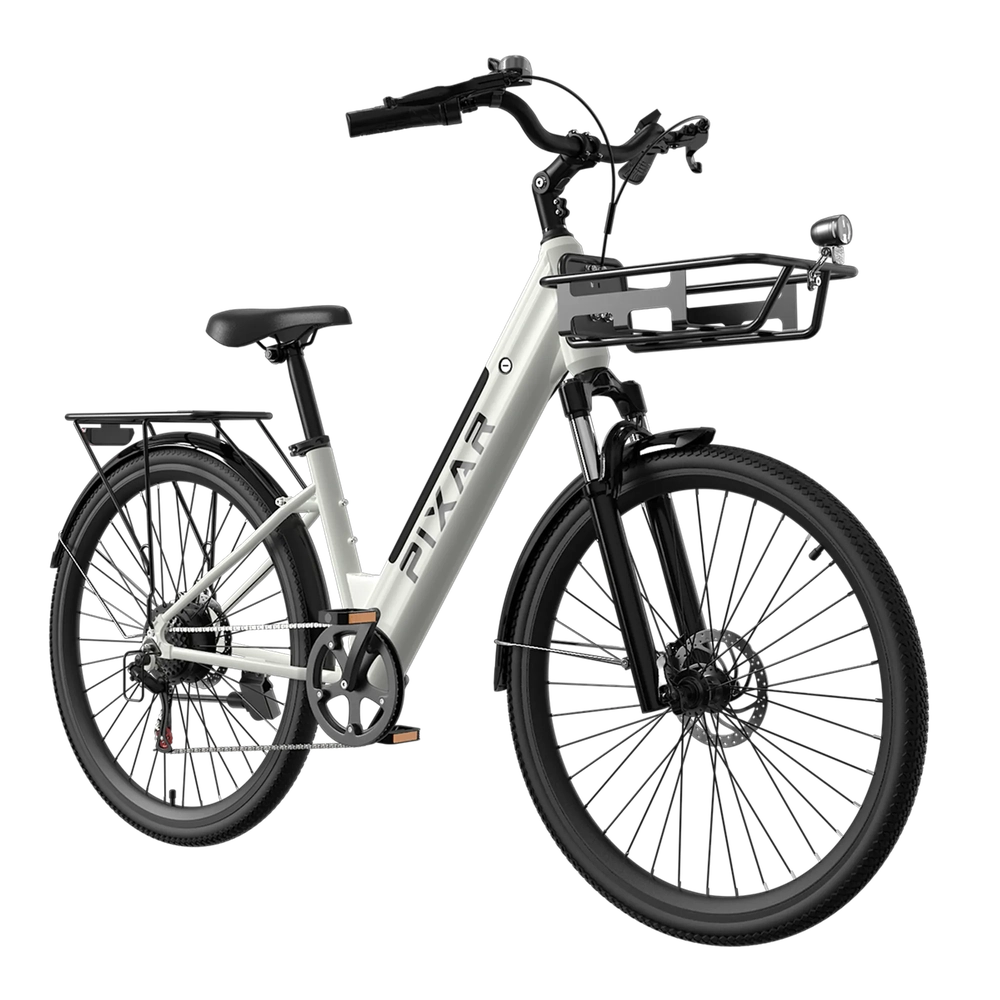

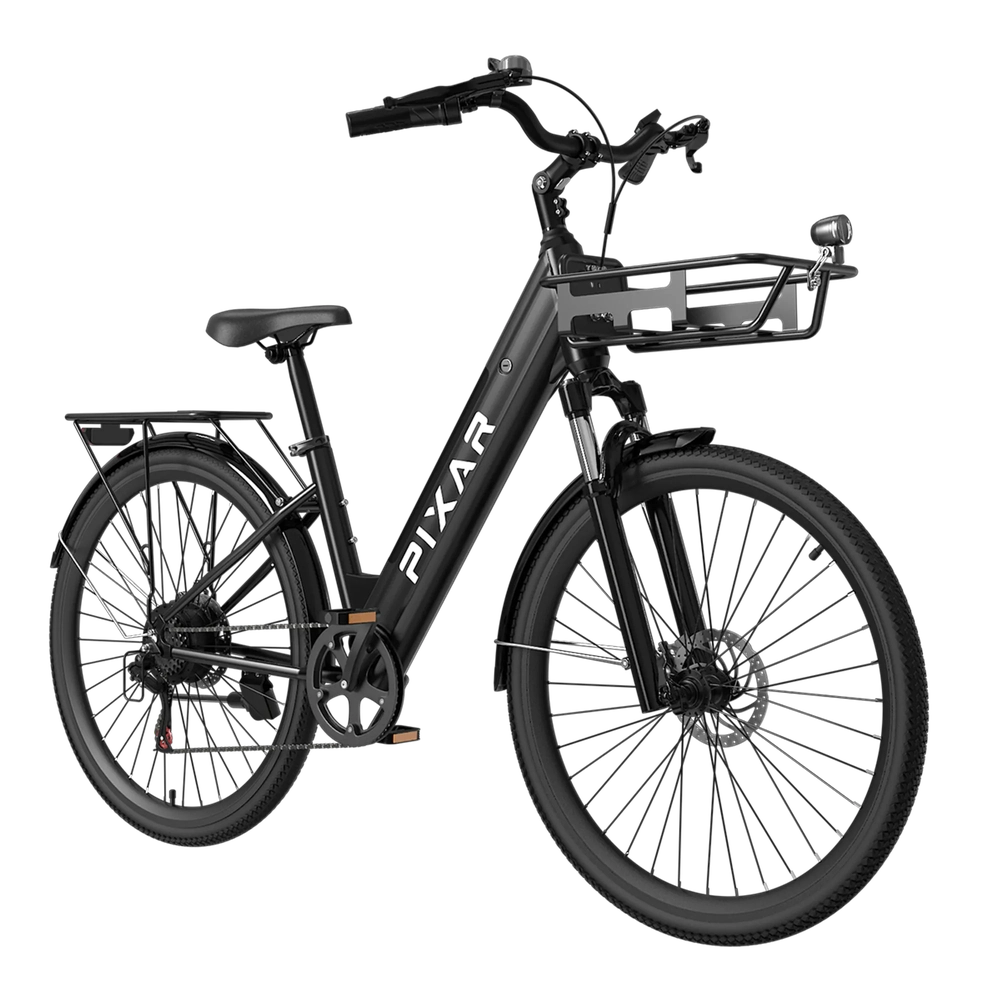

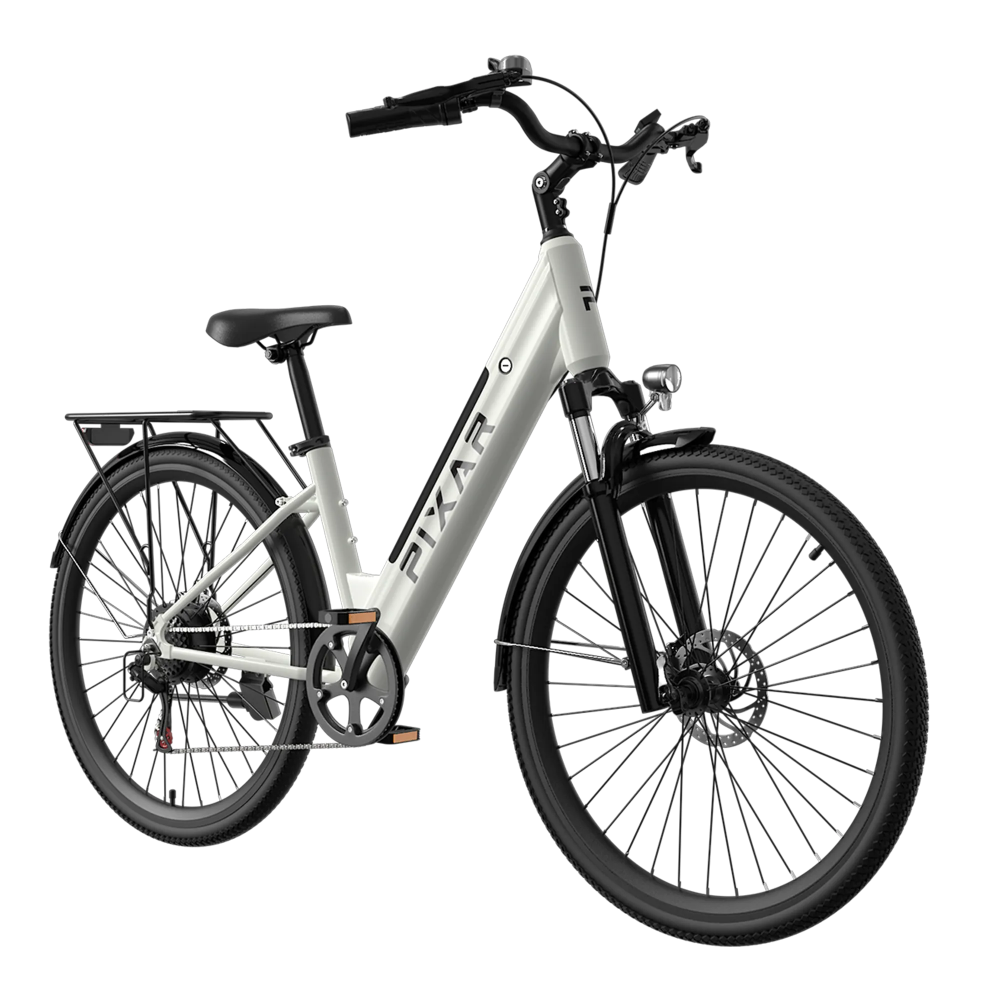

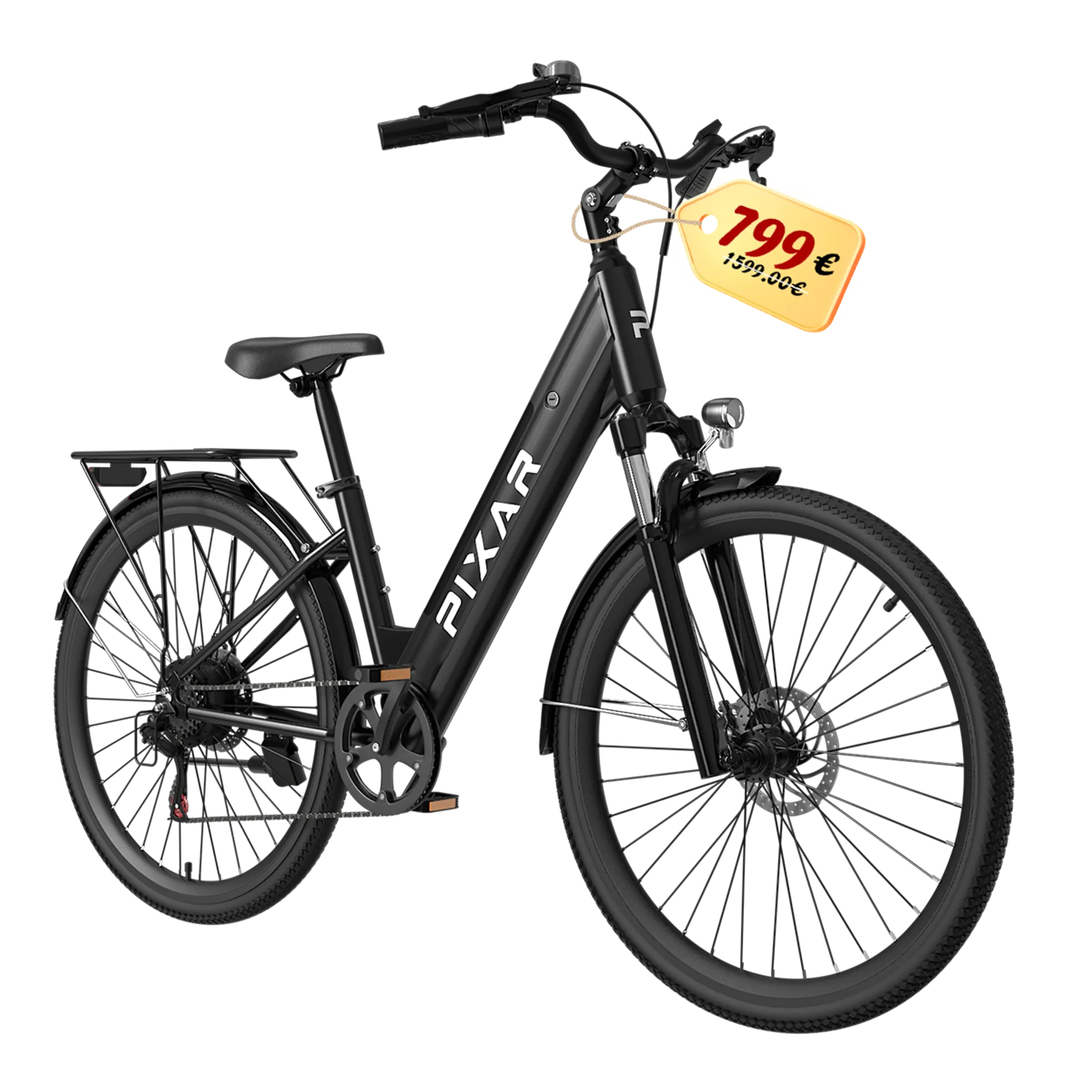

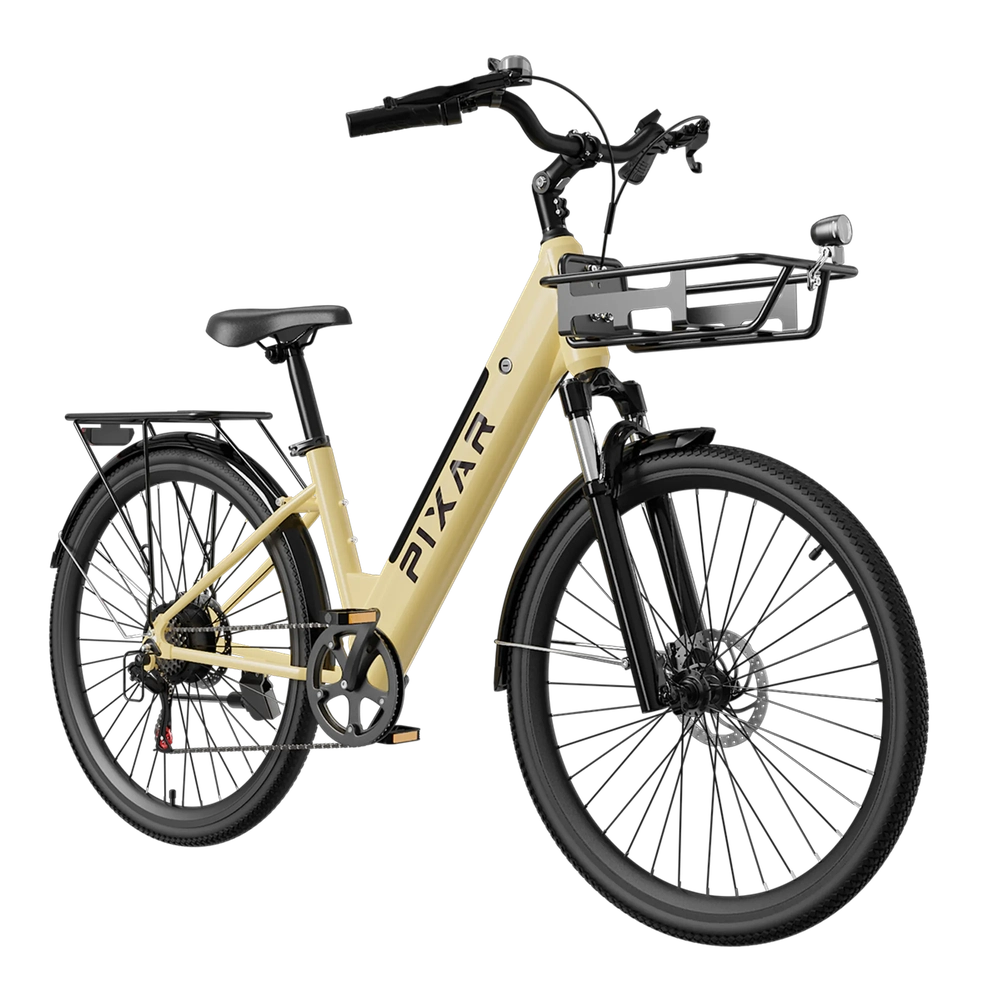

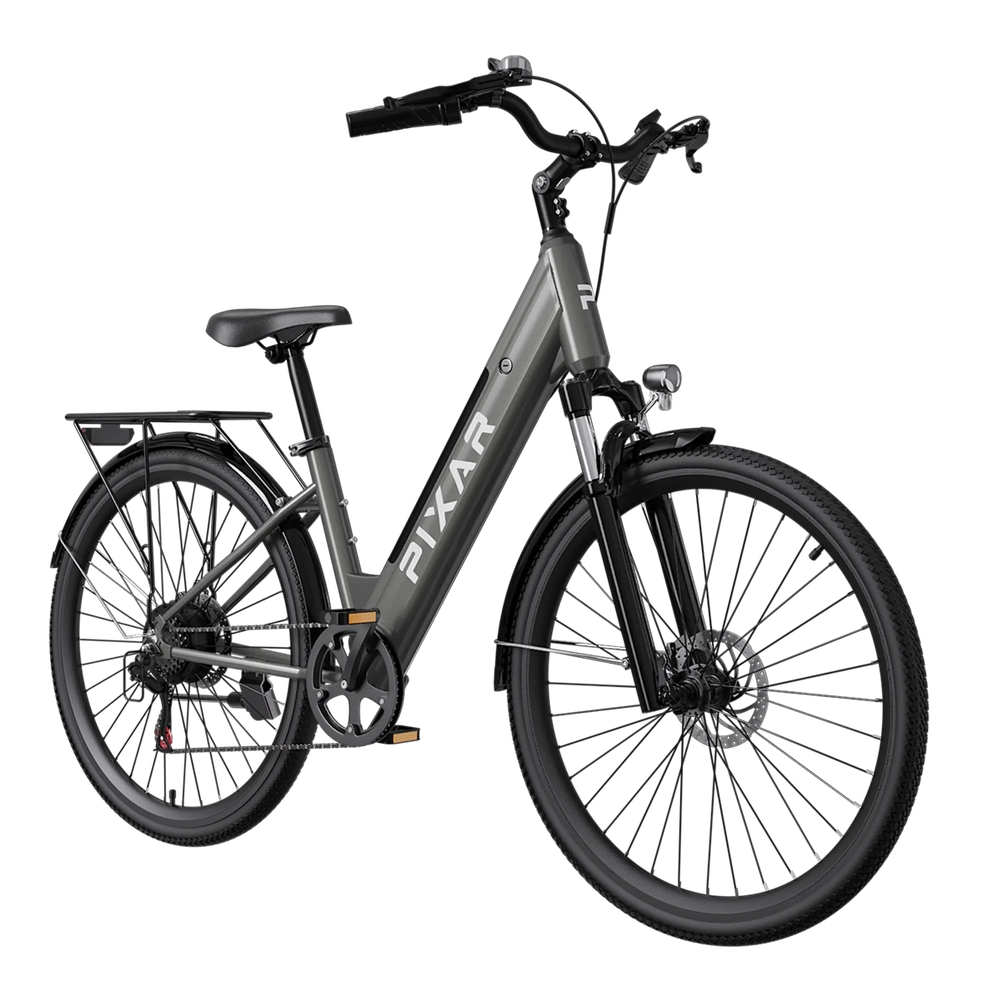

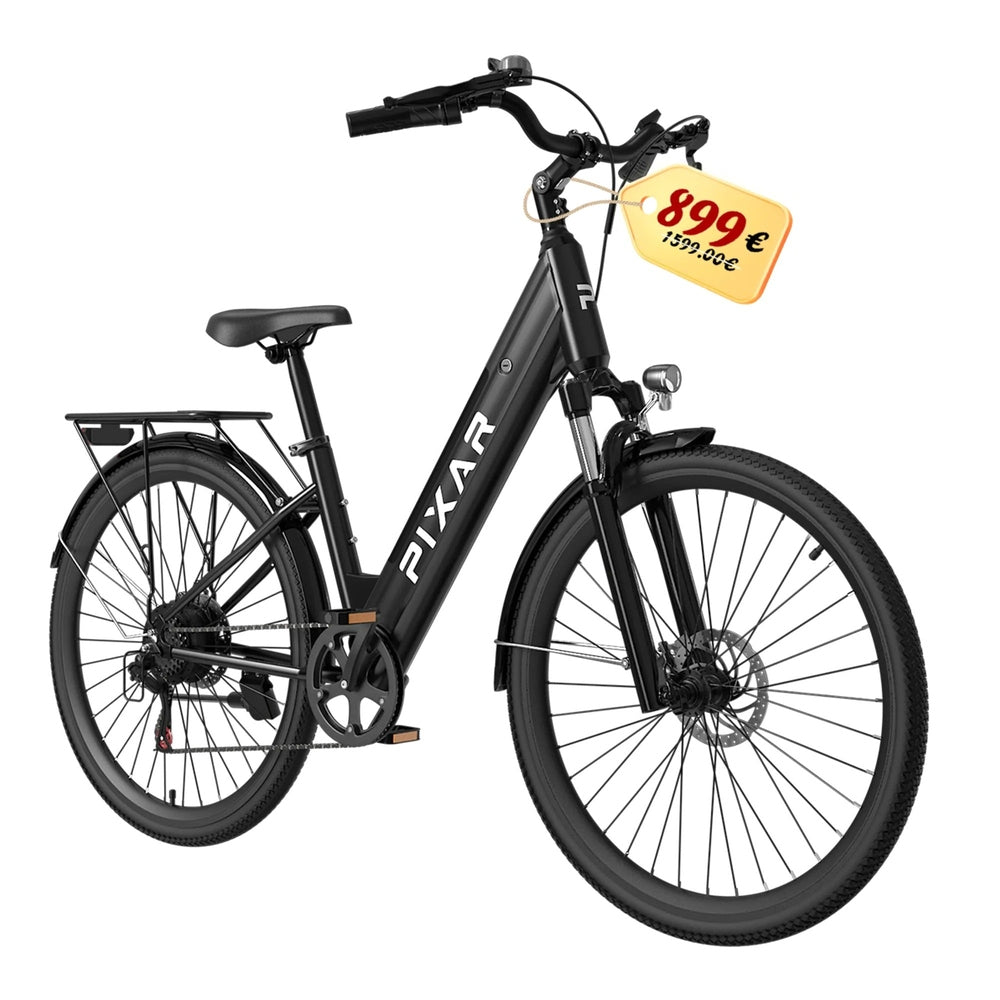

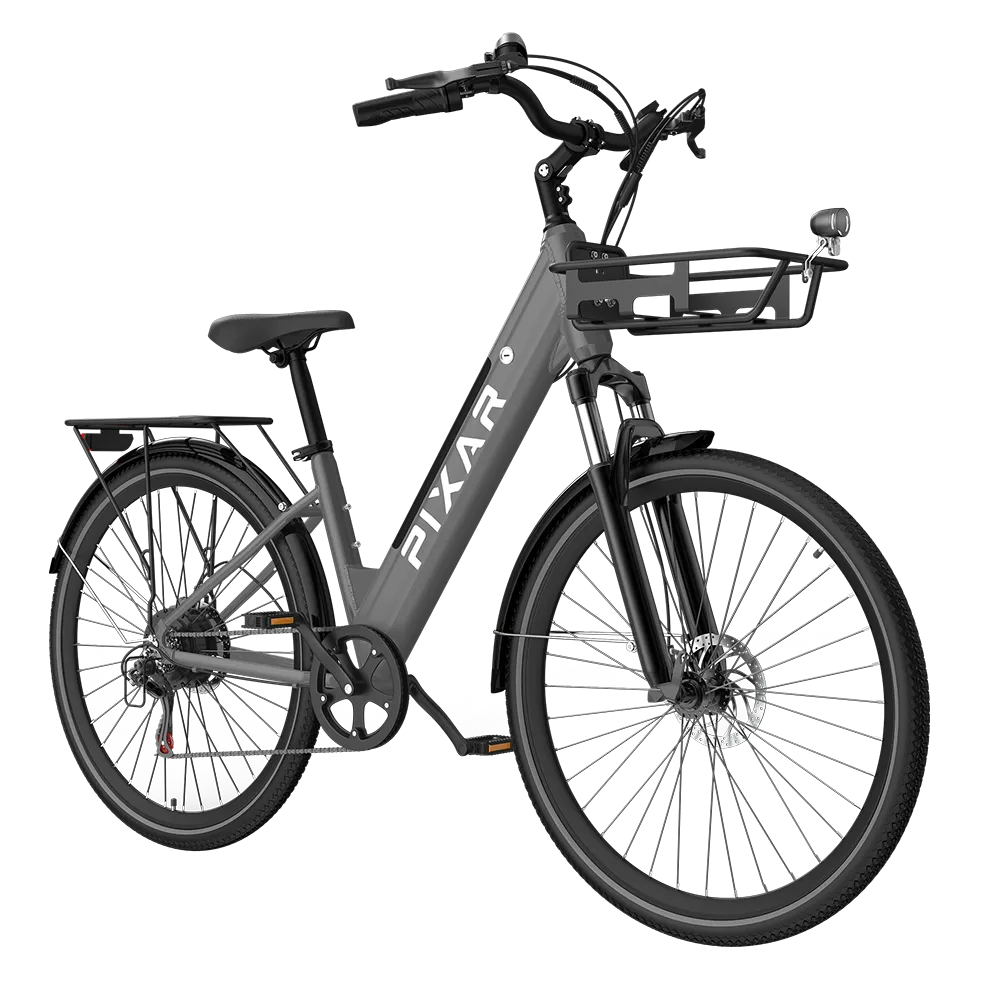

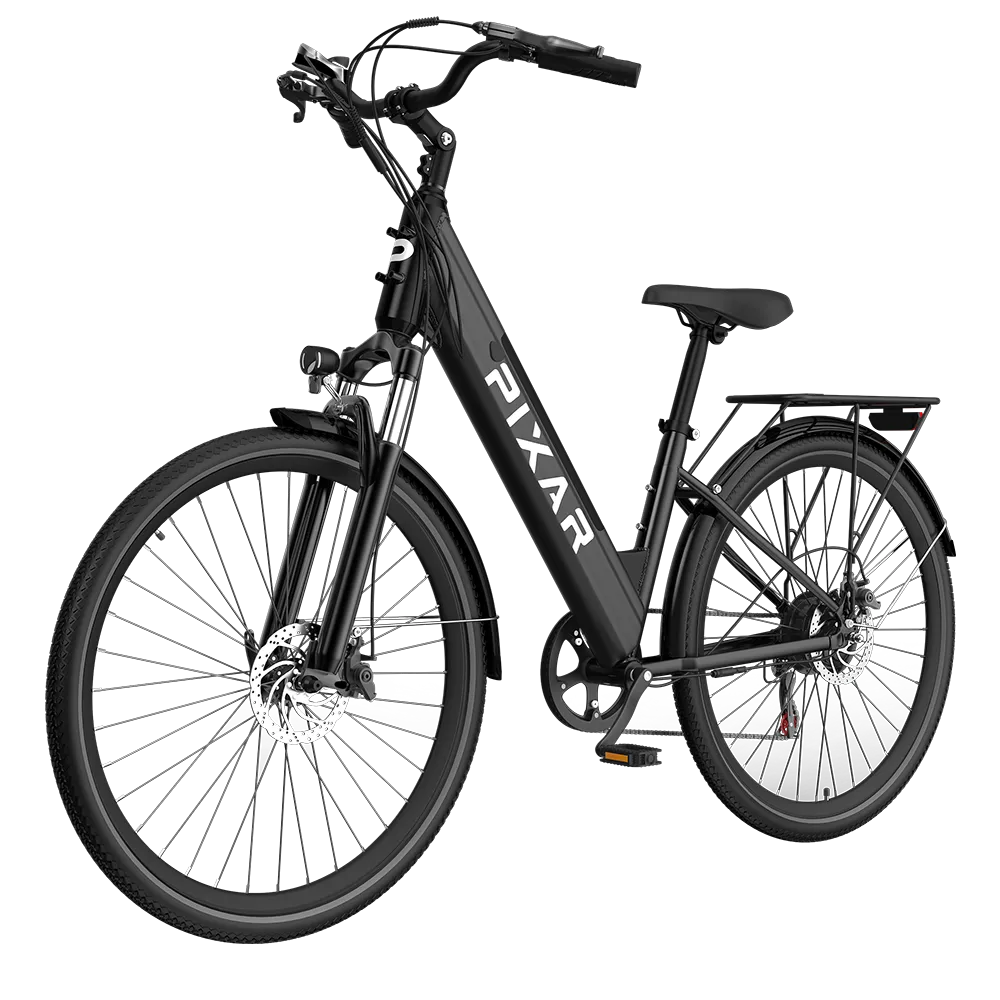

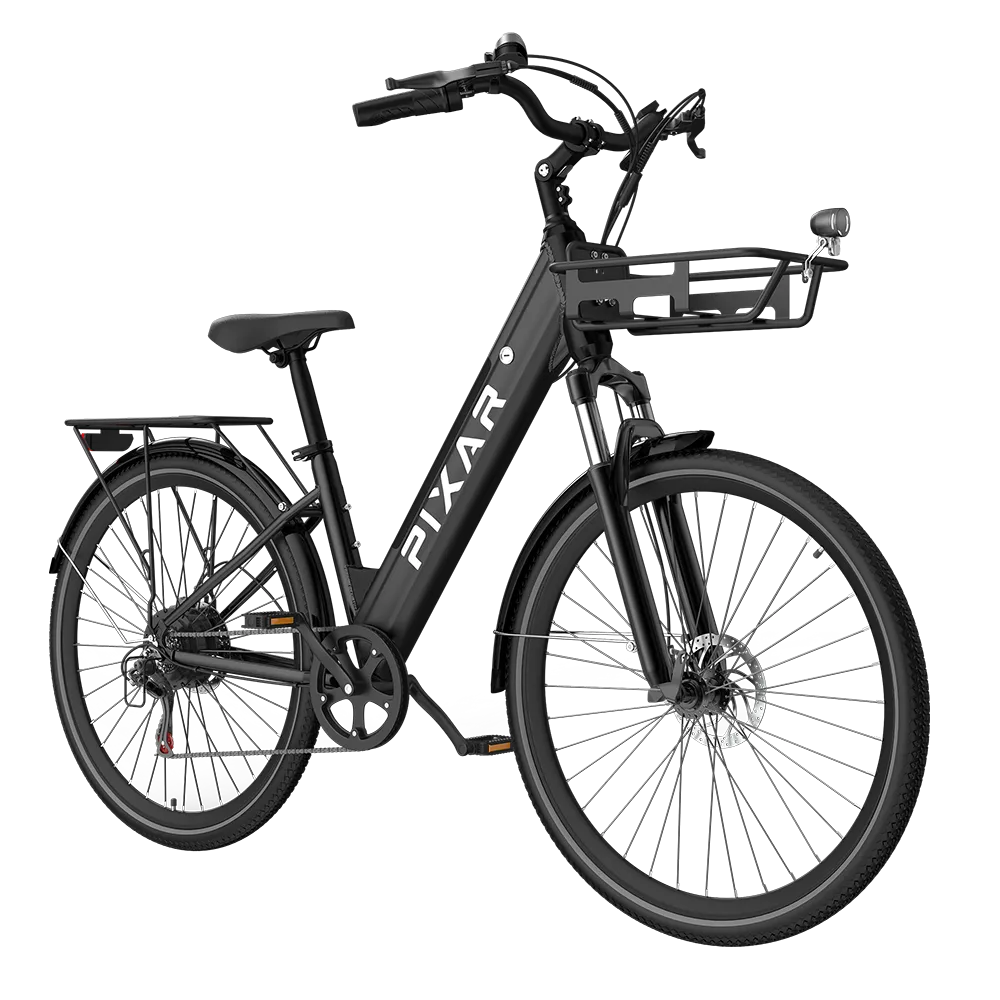

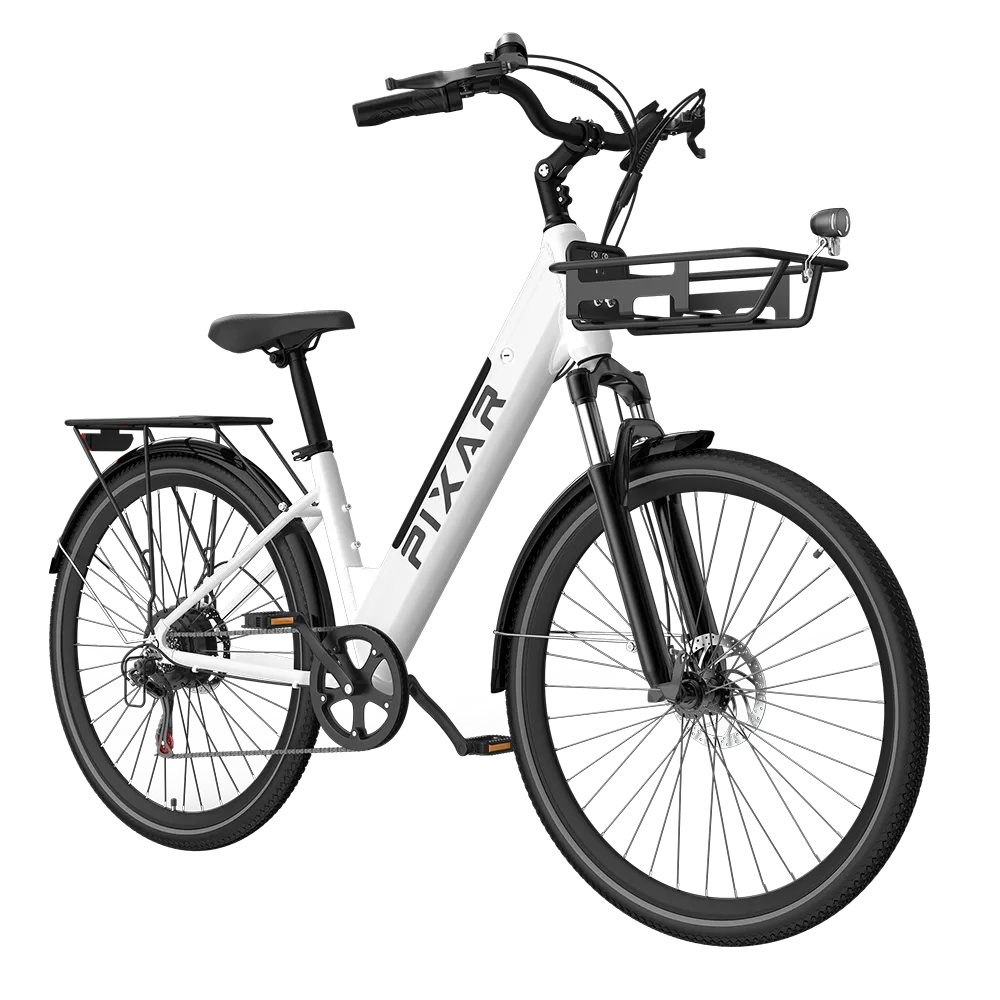

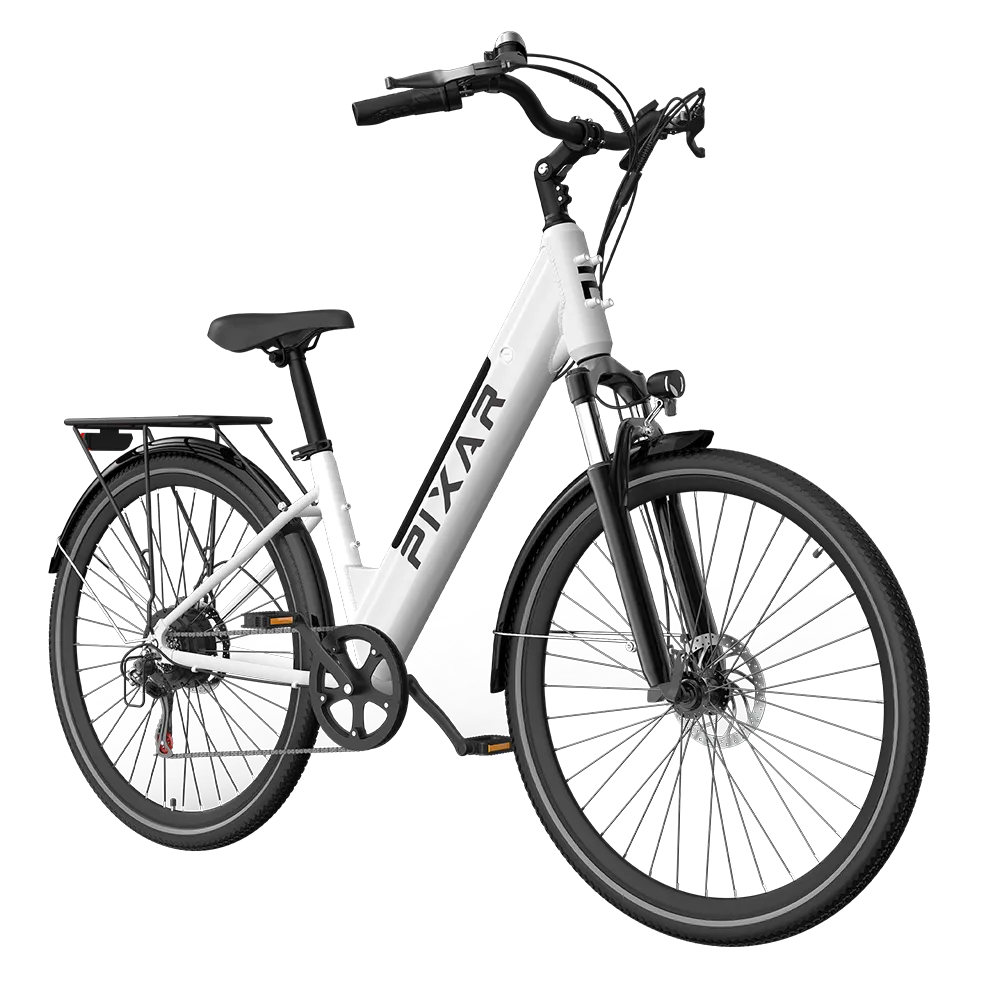

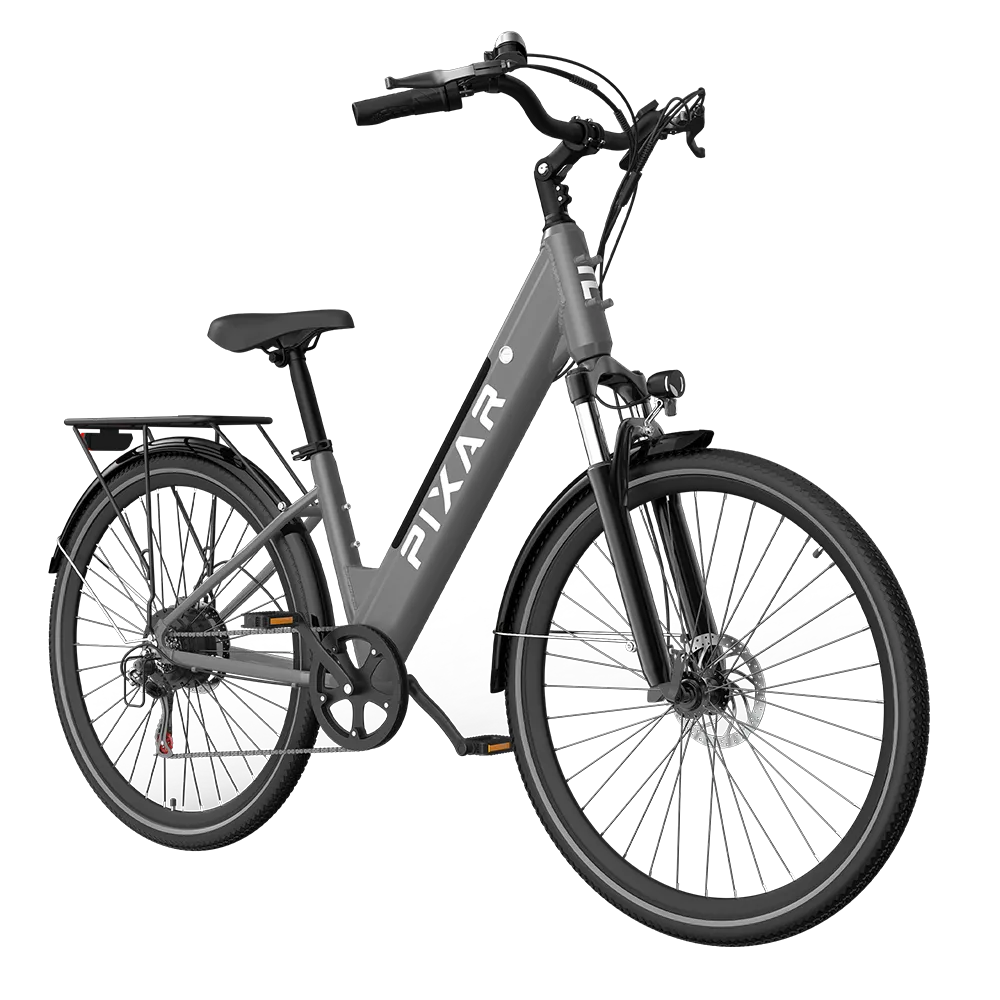

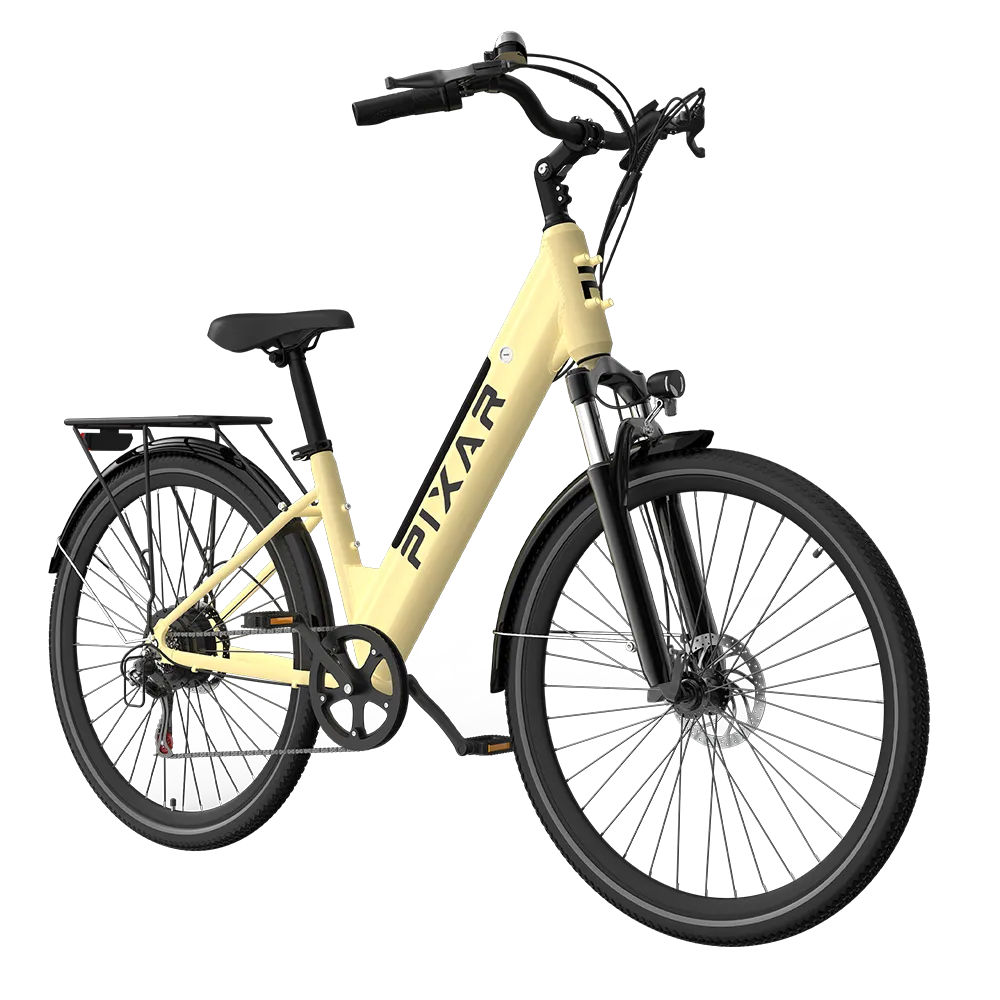

PIXAR® Cruiser Electric Bike 25km/h
Get 50€ discount
Code: PIXAR50
Your stylish companion to explore the city.
Choose a right E-bike from the Cruiser series, and you are sure to upgrade your riding experience.
The low frame design offers comfortable elegance for anyone who wants to travel in style. Whether you are wearing fashionable dresses or casual outfits, this e-bike fits your lifestyle perfectly.
BAFANG 250W Power
The Curiser features a 250W outer rotor BLDC motor from the BAFANG sub-brand. The motor is equipped with a 5-level pedal assist system (PAS).The motor utilizes a sinusoidal wave structure and can rotate at a speed of 3805 revolutions per minute within one minute.
Equipped with 460Wh Samsung battery
The Curiser is equipped with a 36V 12.8Ah Samsung 21700 lithium battery, offering greater capacity and 6% higher energy density compared to traditional 18650 batteries. This allows for longer range and higher power output. It features a quick-release battery design for easy maintenance and has an IP65 waterproof rating, ensuring reliable operation in various environments

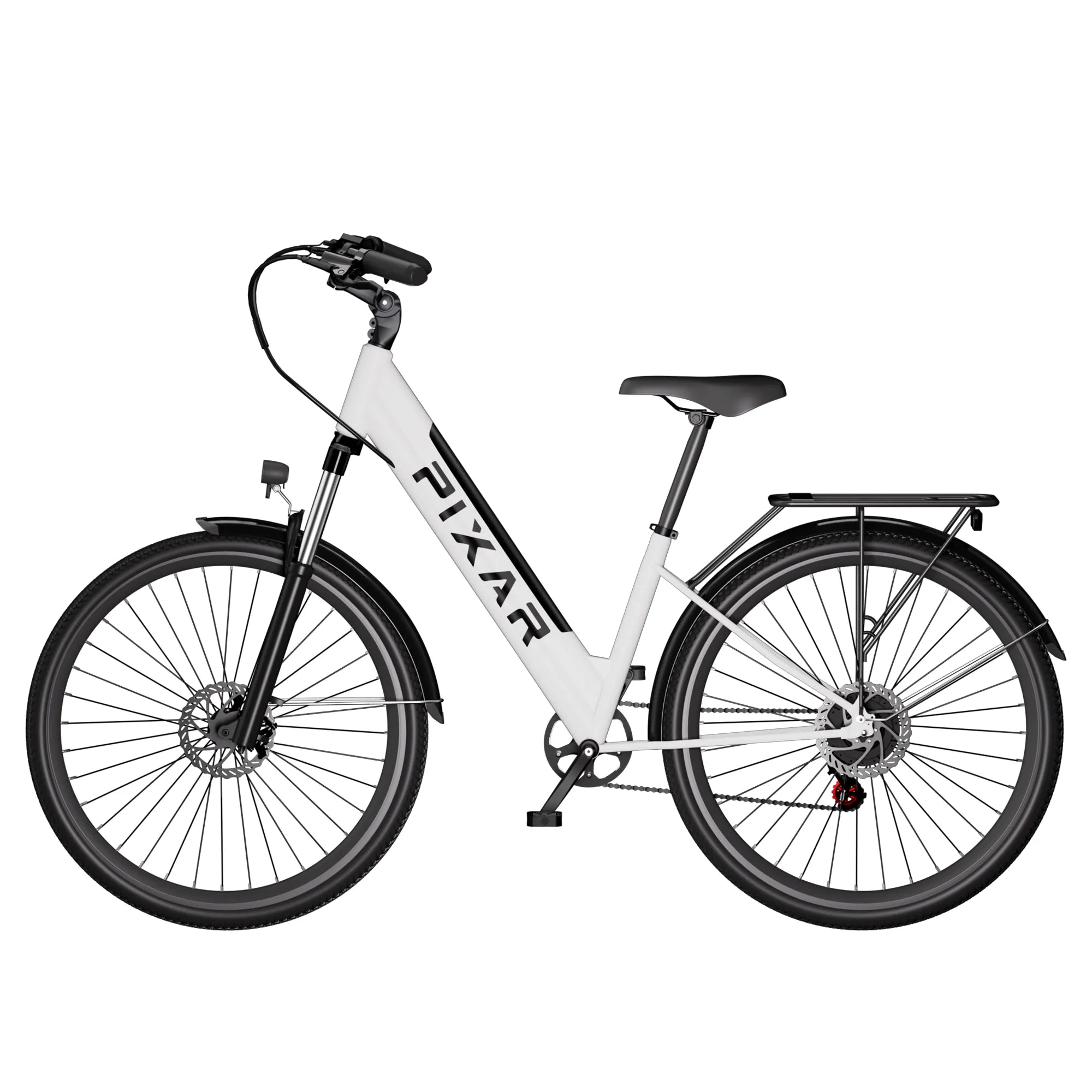

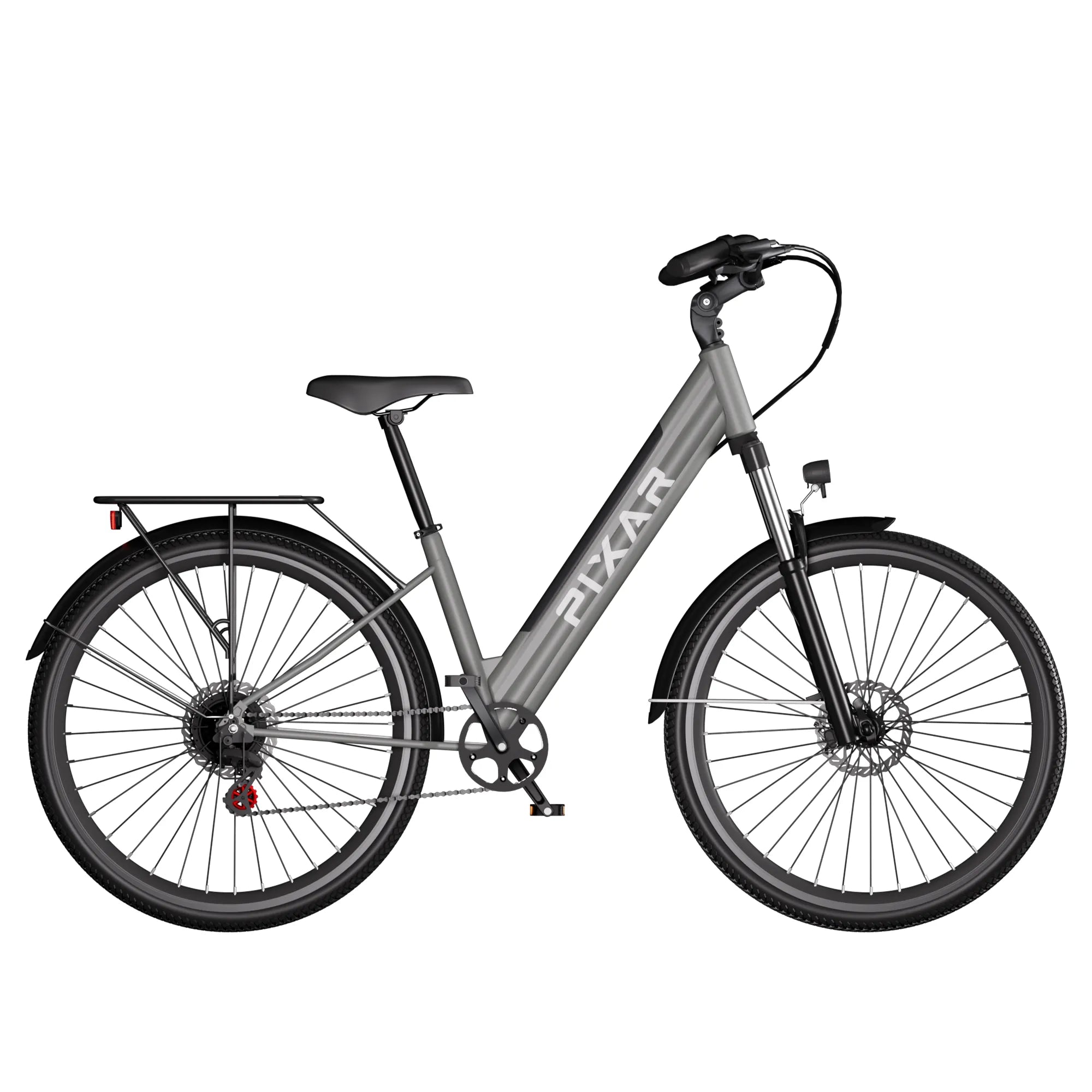

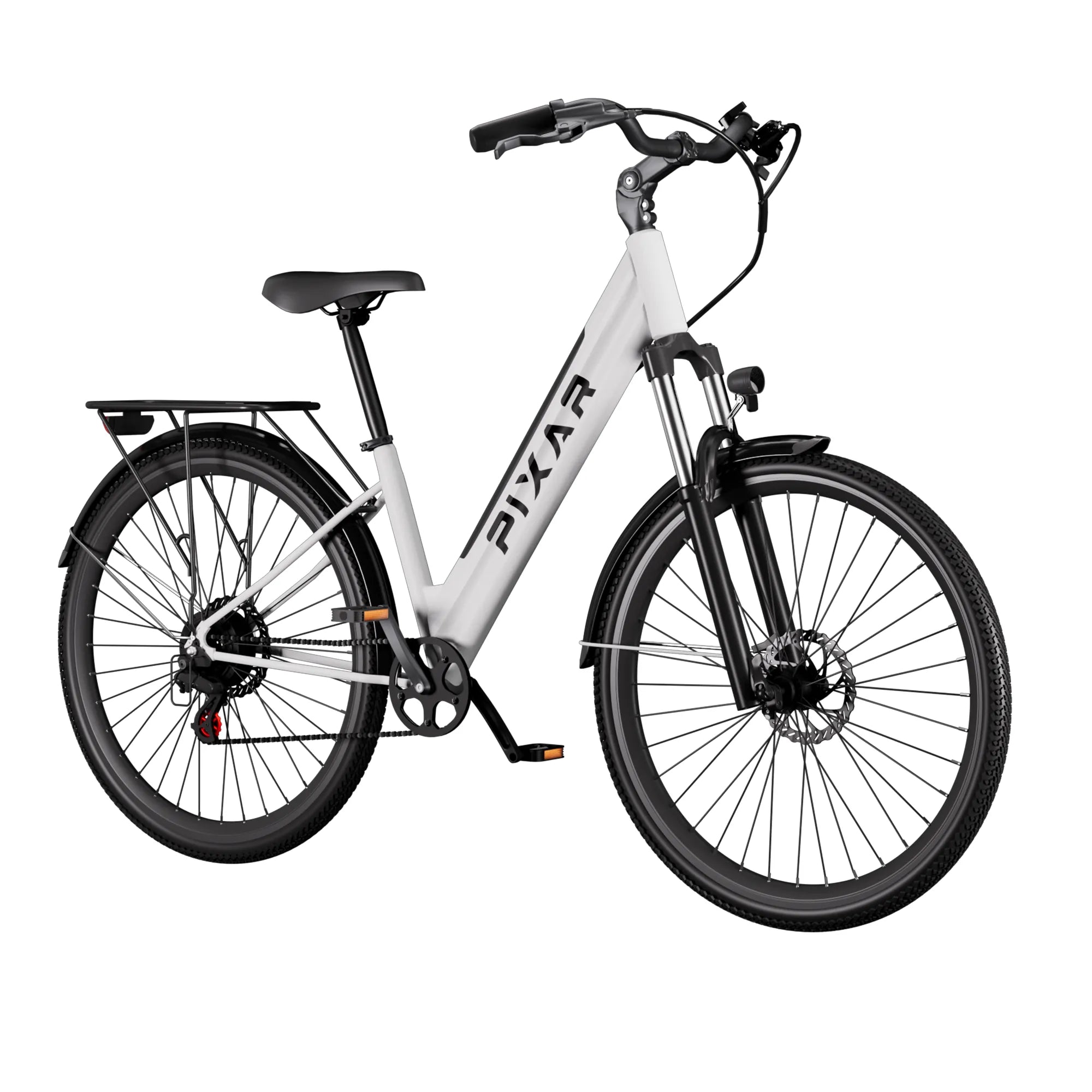

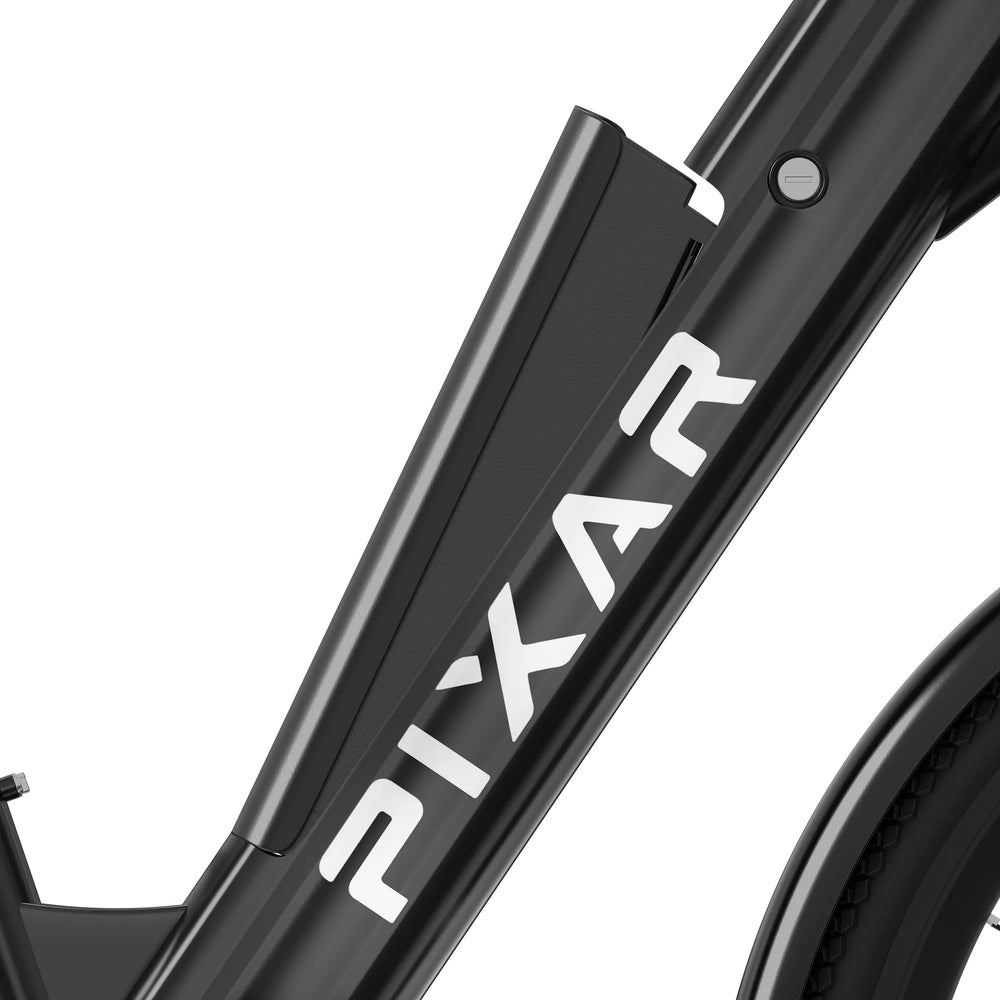

Classic Dutch Bike Design
The Curiser is built using 1000 MPa high-strength alloy die-casting technology, enhancing its structural strength and stability. The frame is treated with electrophoretic rustproofing, making it resistant to corrosion even after long-term use. Its low-step design allows more riders to enjoy the fun of cycling, while also offering added convenience for those with limited mobility.

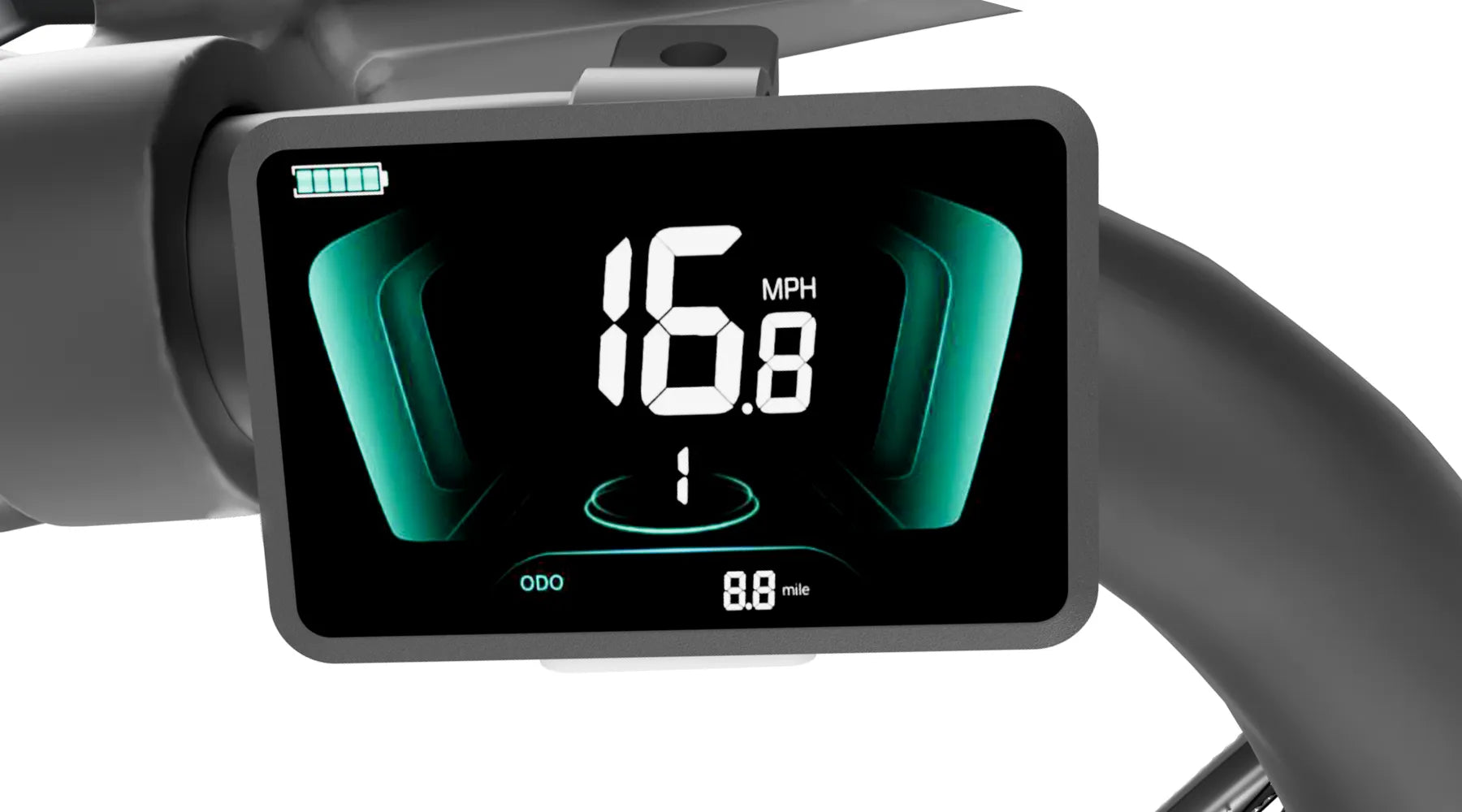

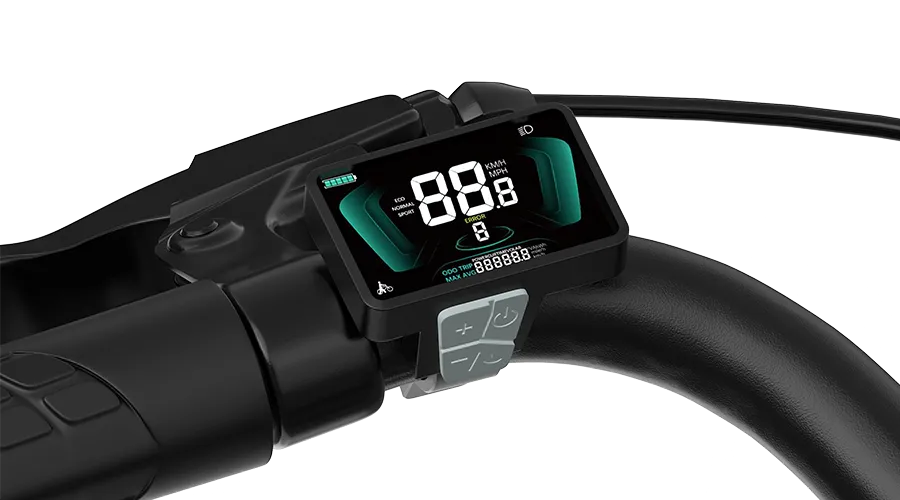

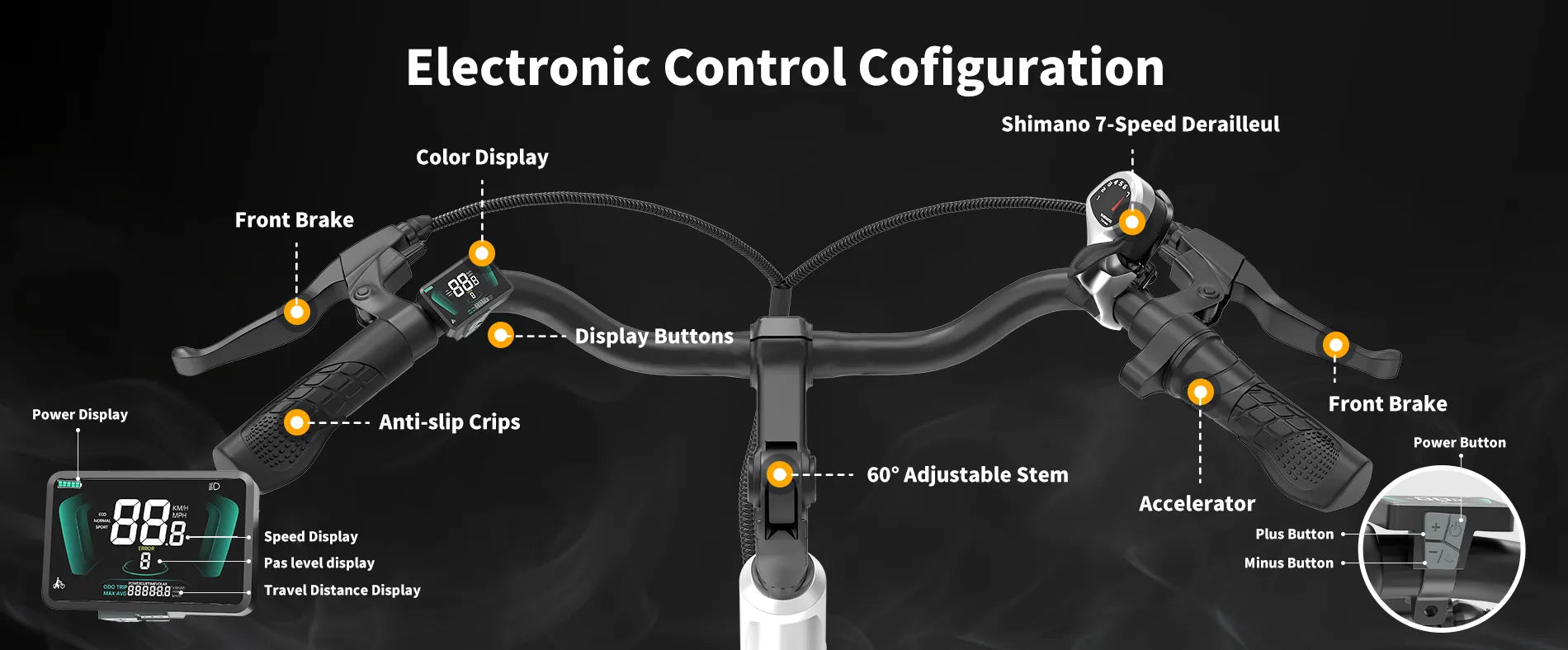

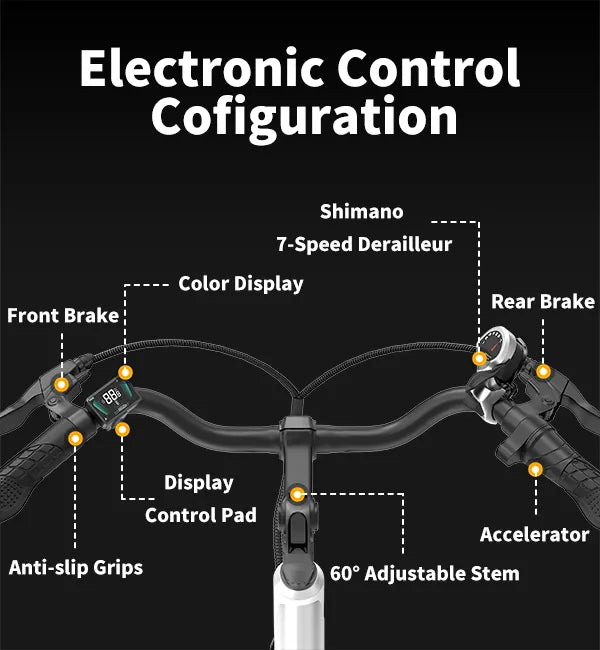

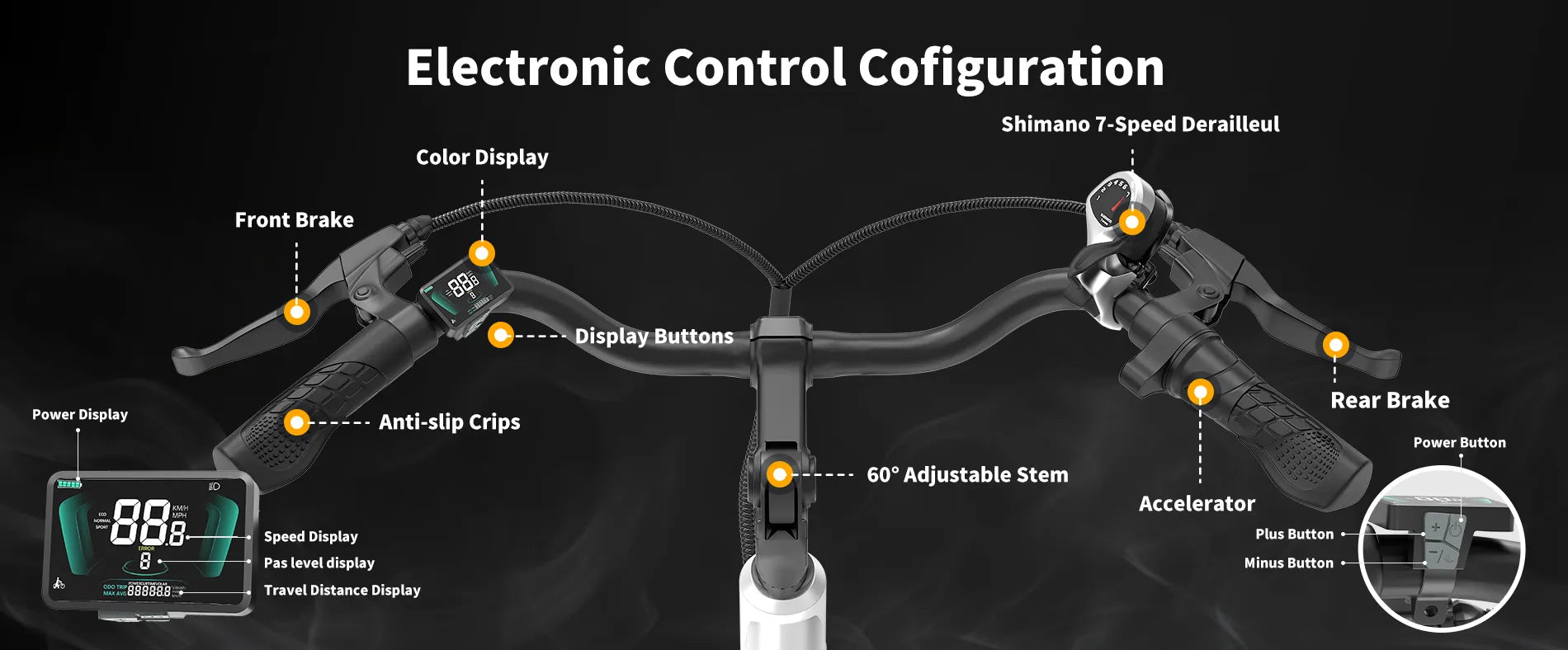

LCD Display
The display integrates a variety of important information displays, and you can clearly see key information such as speed, power, mileage, etc.; waterproof level IPX6

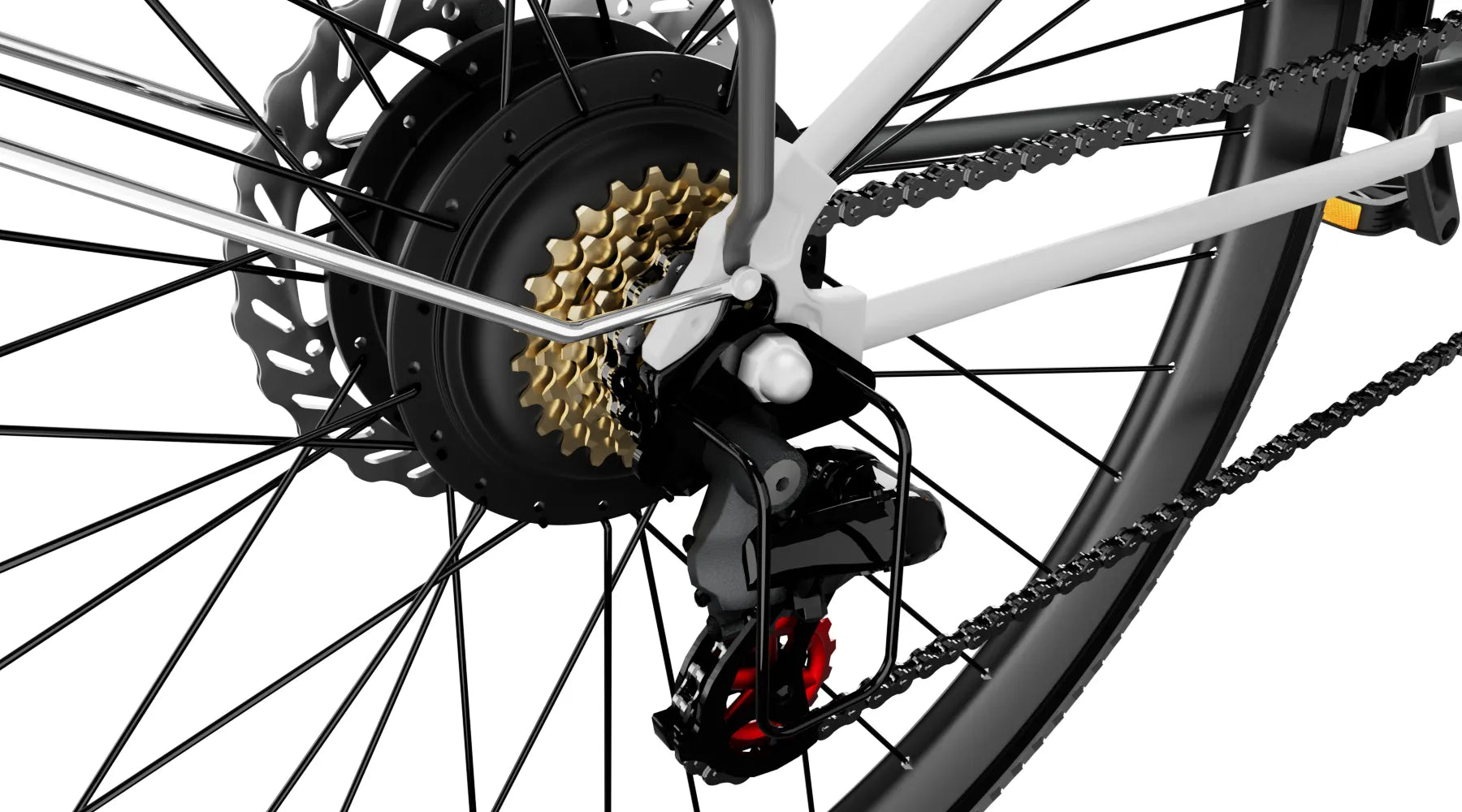

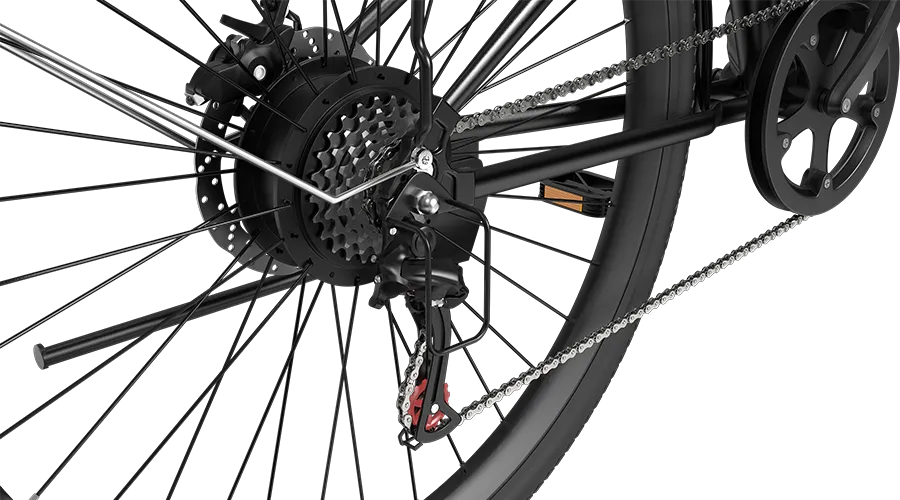

Gear rim
The Shimano® 7-speed transmission (14-28T) impresses with its powerful lightness and outstanding performance on all roads. The smooth gear changes ensure a more pleasant riding experience.

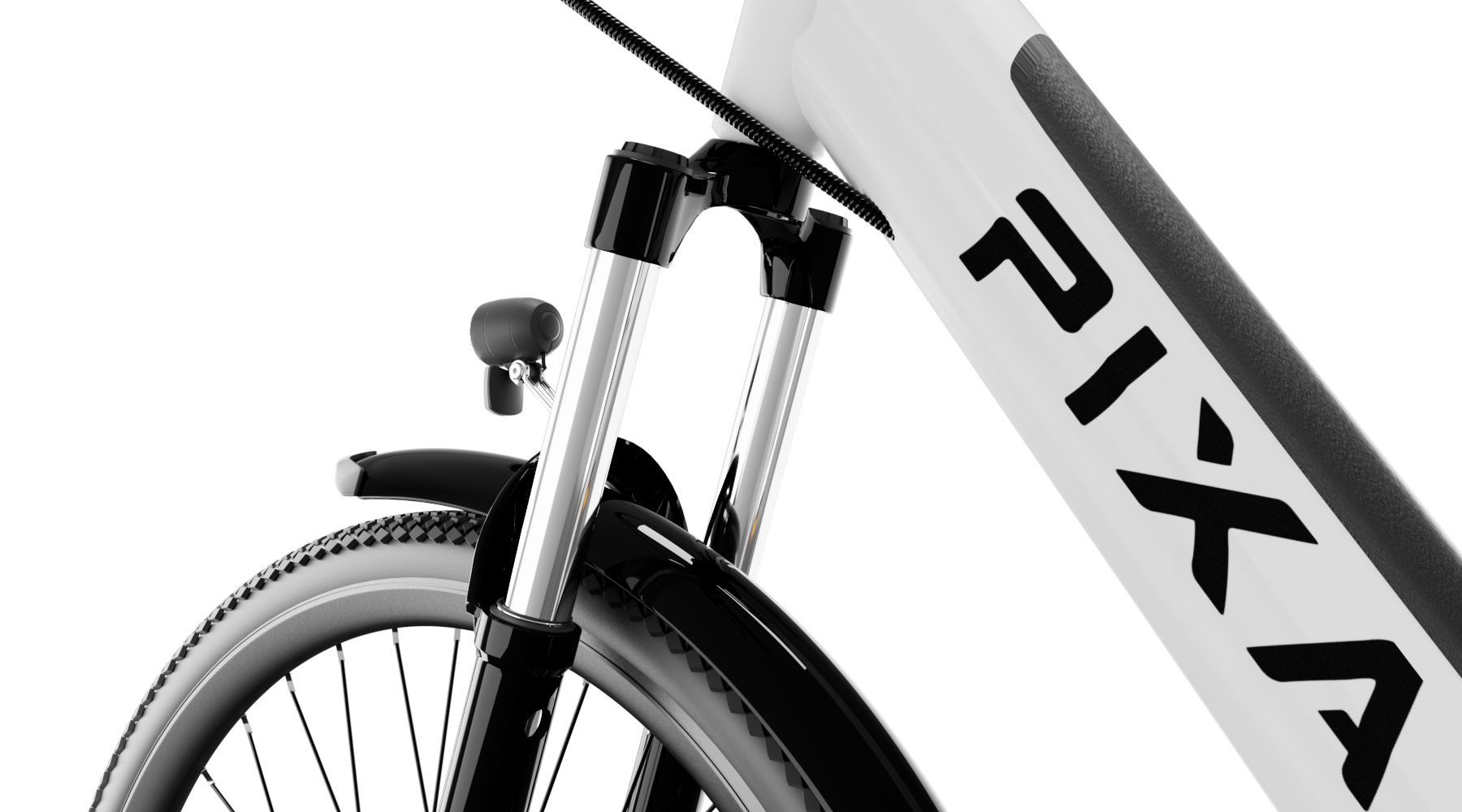

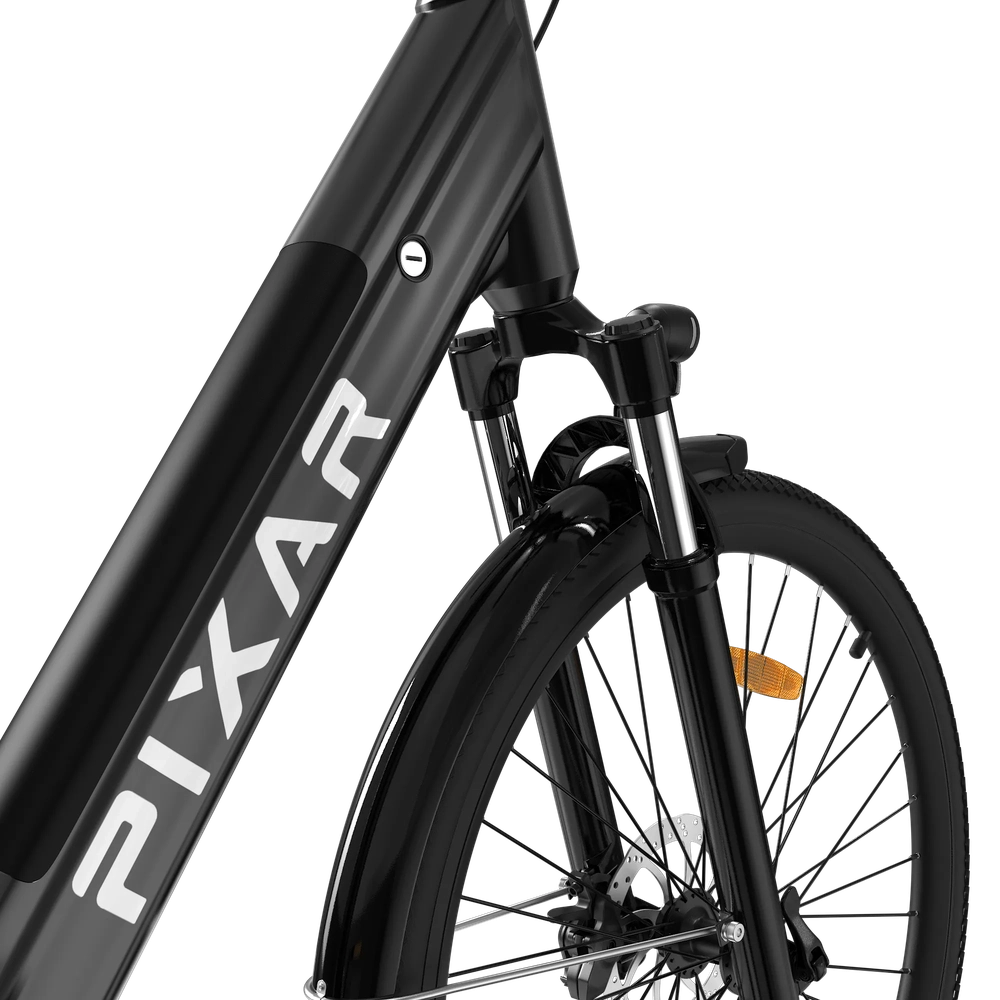

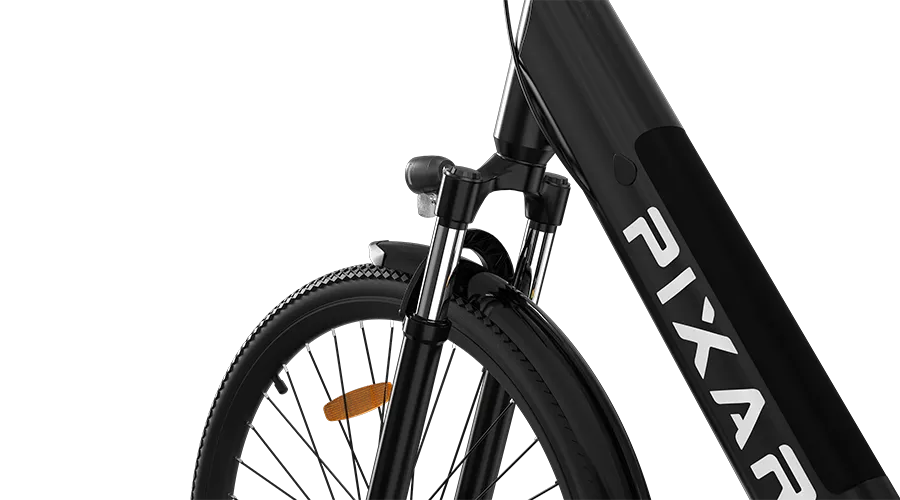

Fork suspension
A spring + hydraulic oil system with 100mm travel lets you customize stiffness via the lockout knob—conquering rough terrain while keeping rides smooth and stable.

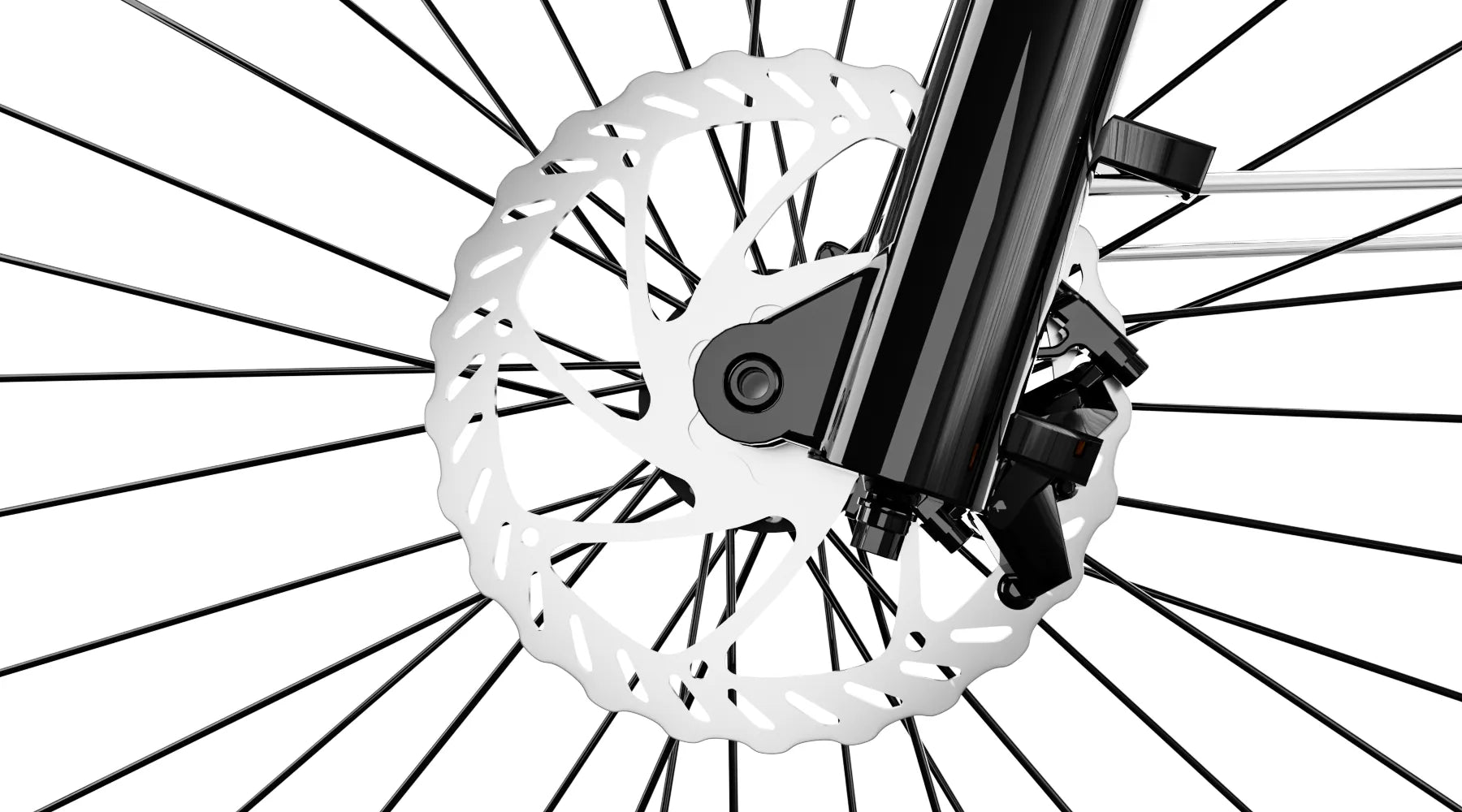

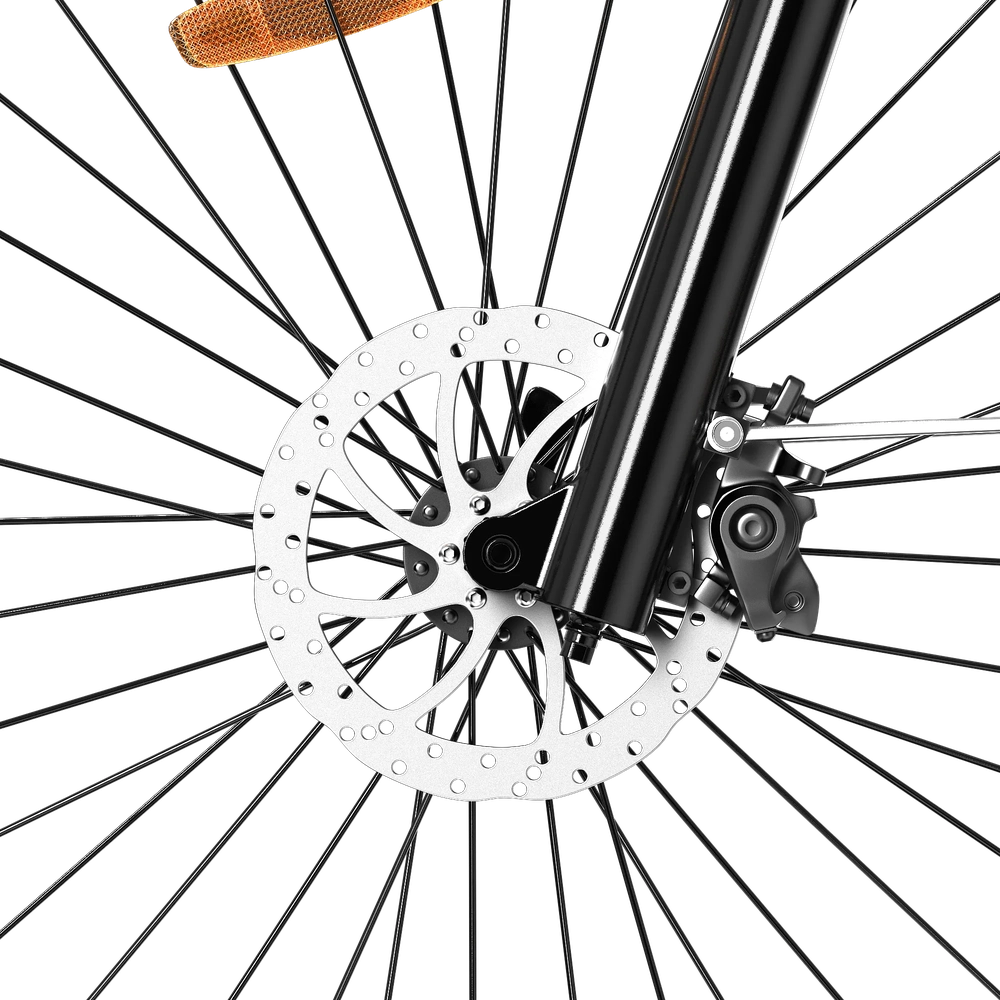

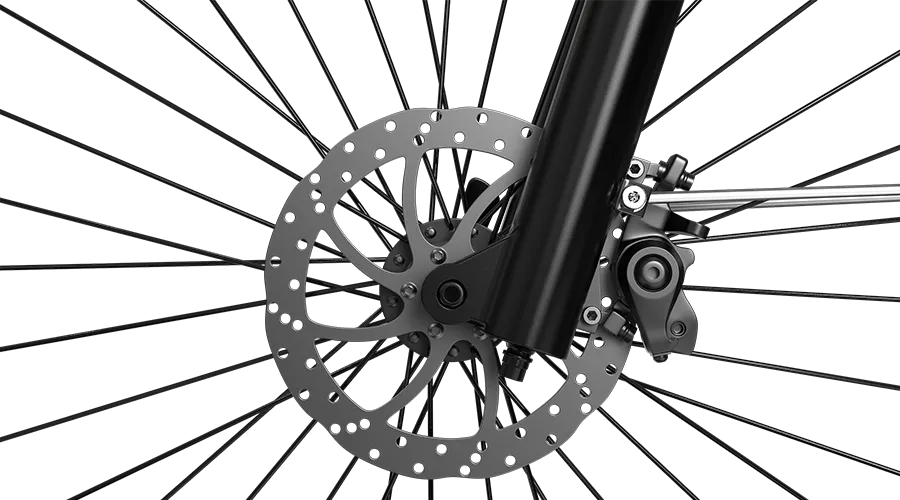

Hydraulic disc brakes
Hydraulic disc brakes offer powerful and safe braking performance in contrast to mechanical brakes. Whether on steep descents or abrupt stops - stay in control and overcome obstacles with confidence.

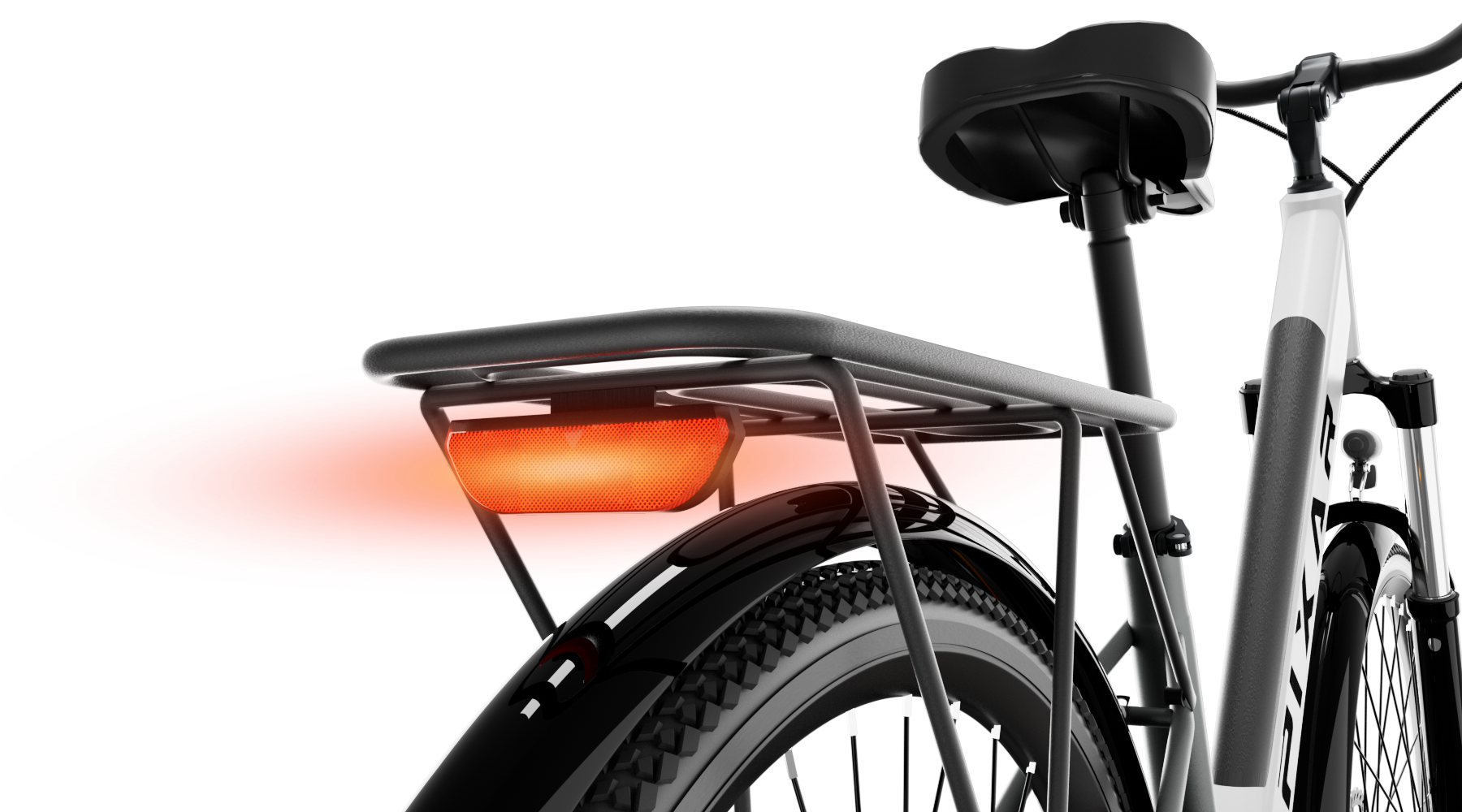

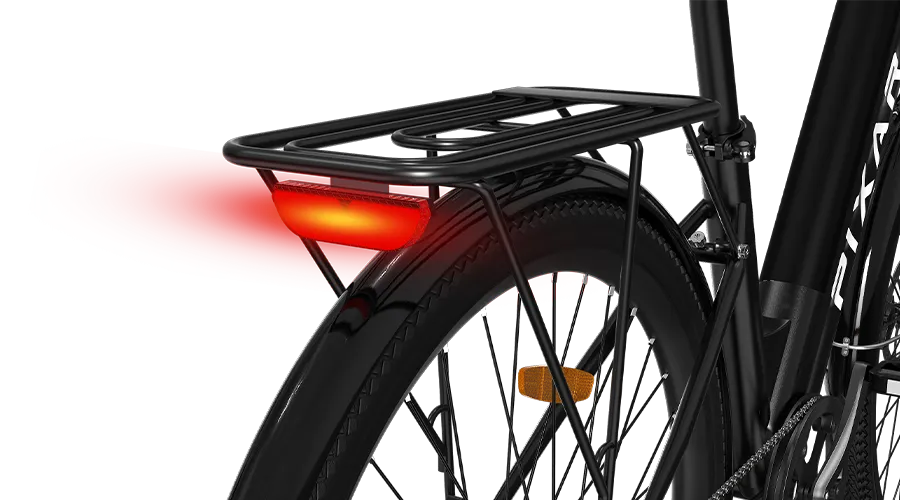

Rear taillight
The brake-activated bicycle taillight has ultra-bright visibility of over 1 km, allowing you to get home safely even when riding at night.

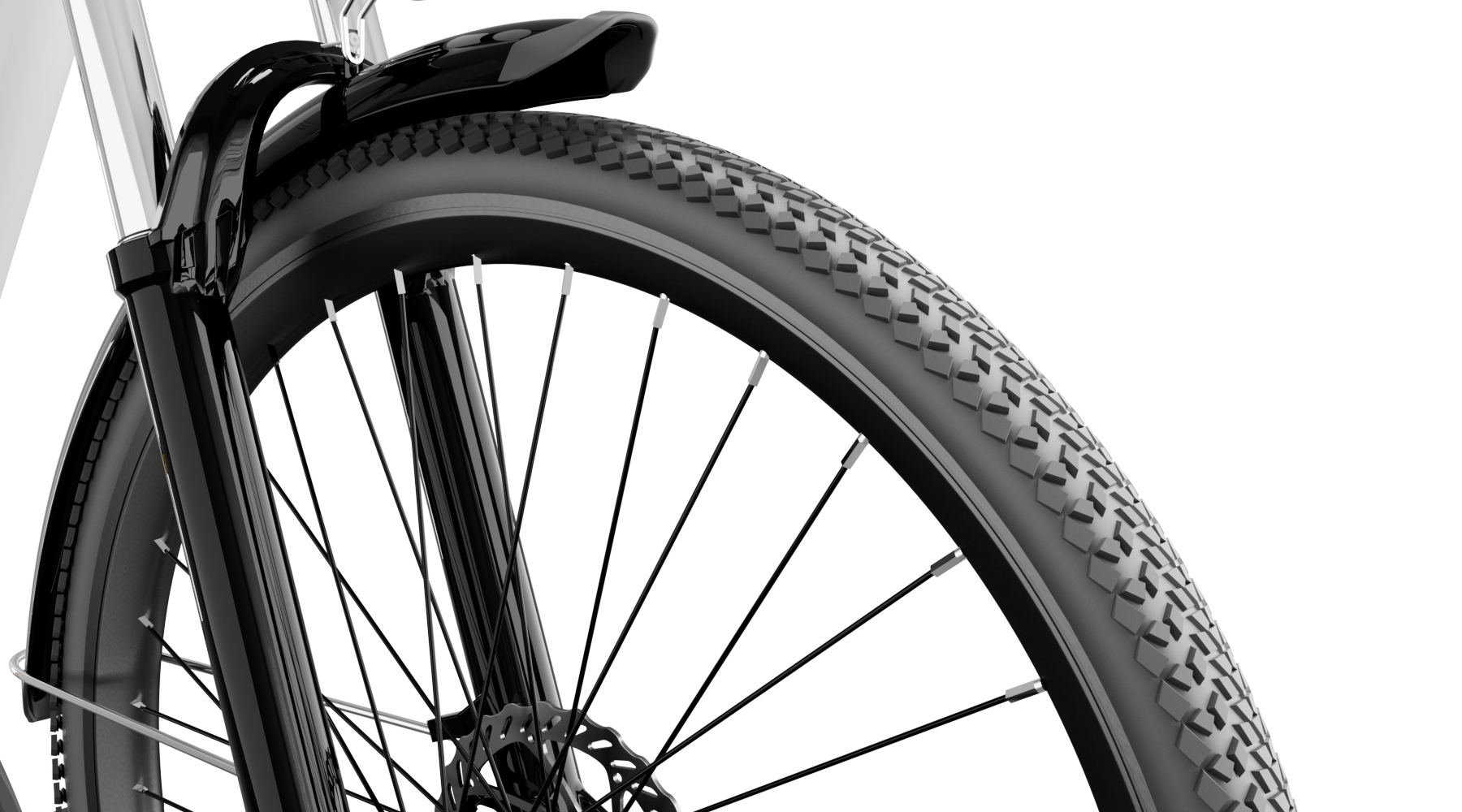

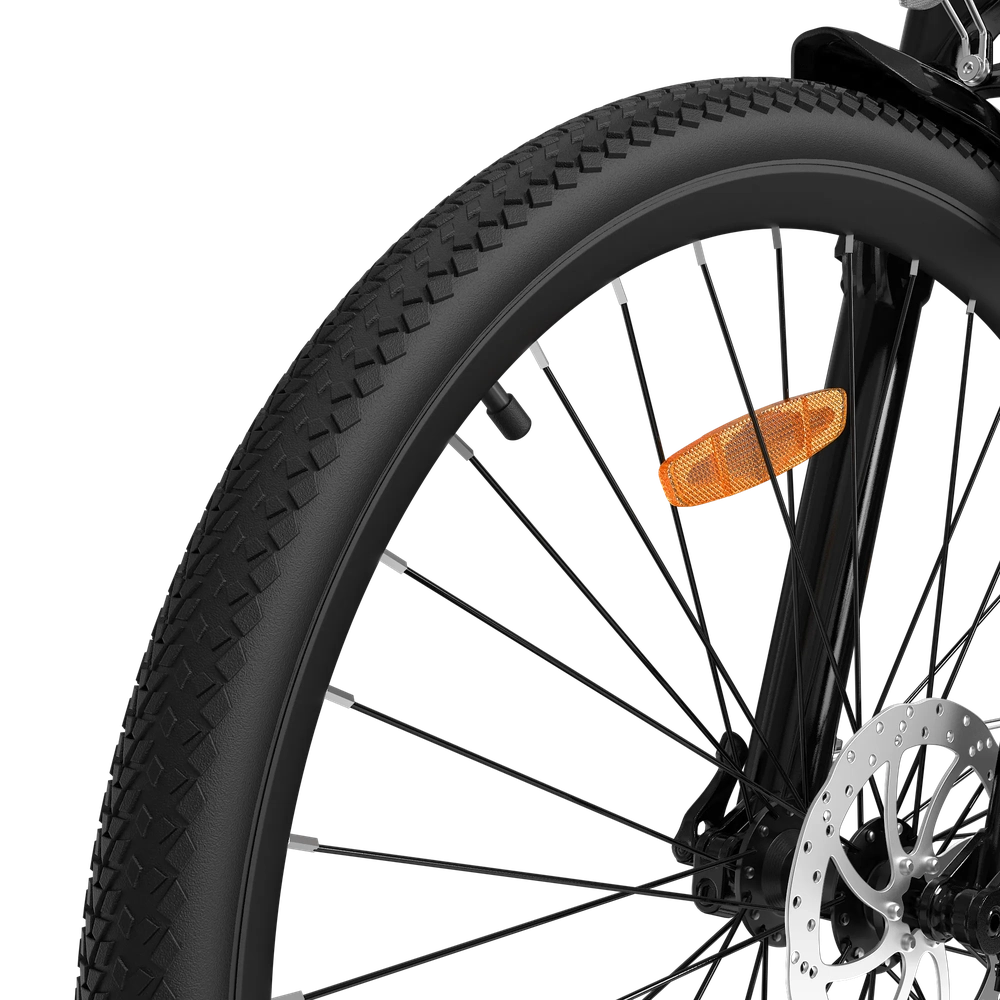

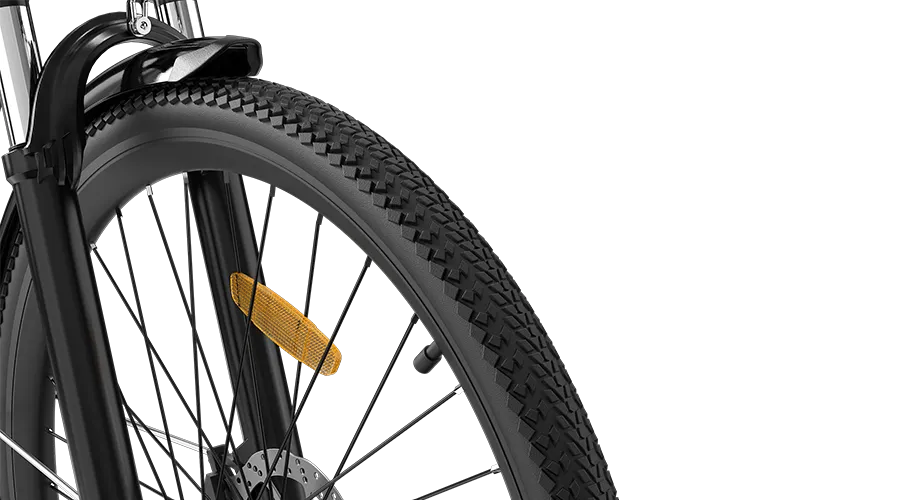

Puncture-proof tyres
The 26" x 2" tyres with anti-puncture technology are versatile for city, gravel and long distances. With puncture resistance and tread patterns, the tyres ensure your safety on the roads.

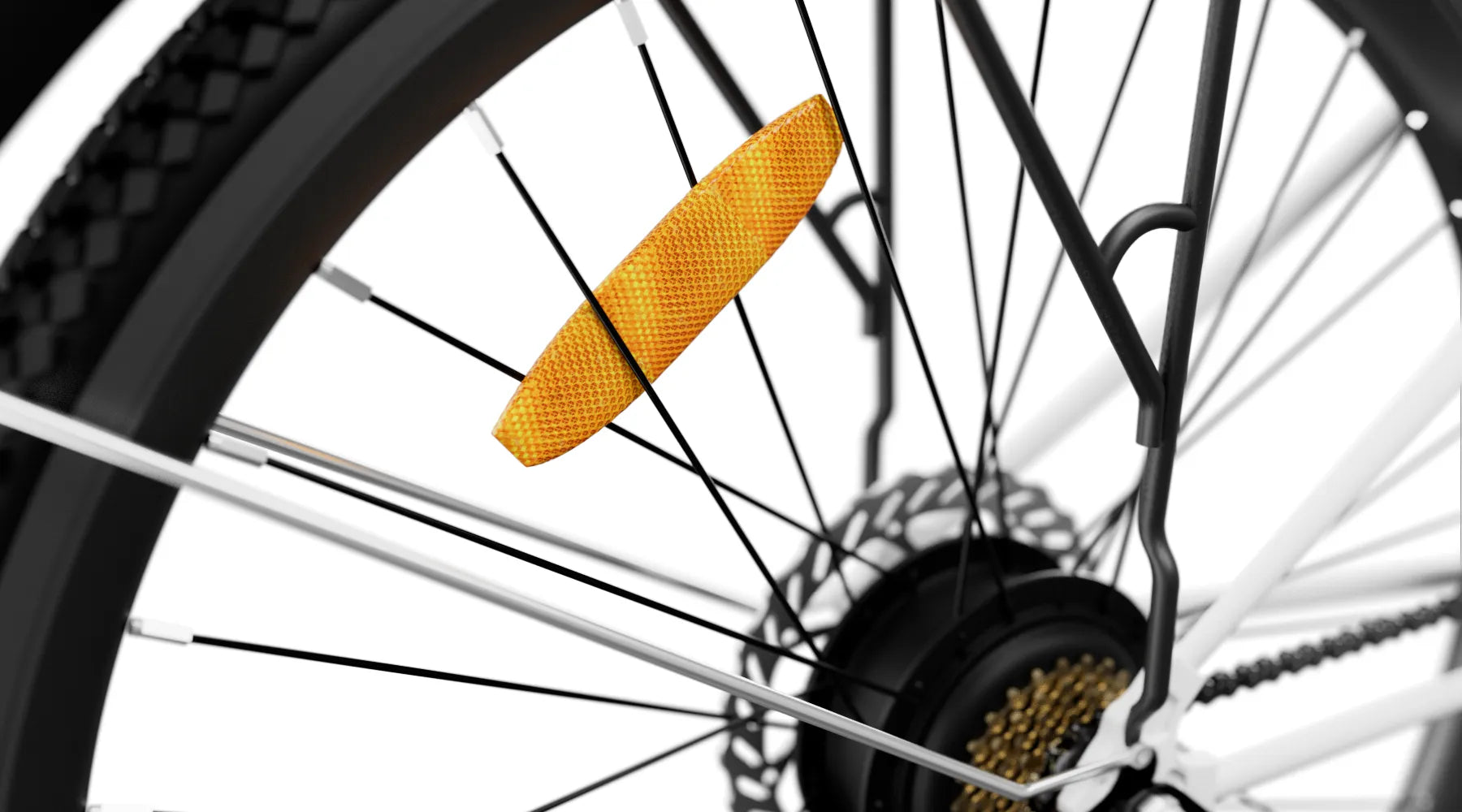

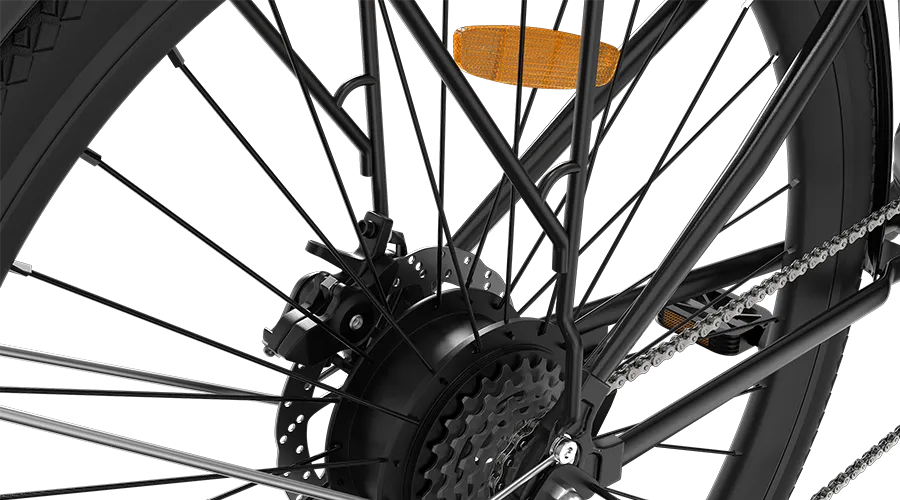

Safety Reflectors
Built-in reflectors enhance nighttime visibility, keeping you safer on the road.
Customer Reviews

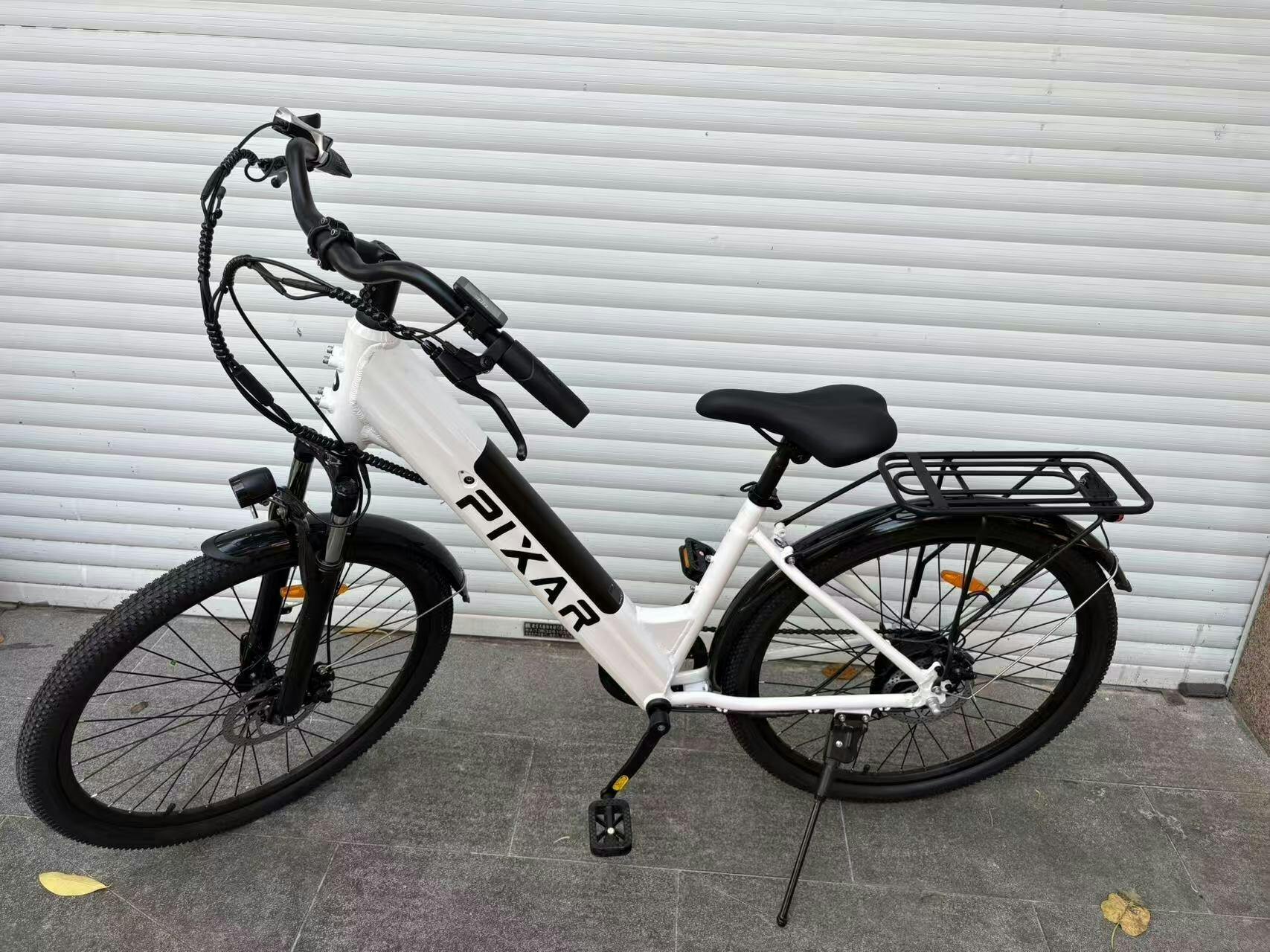

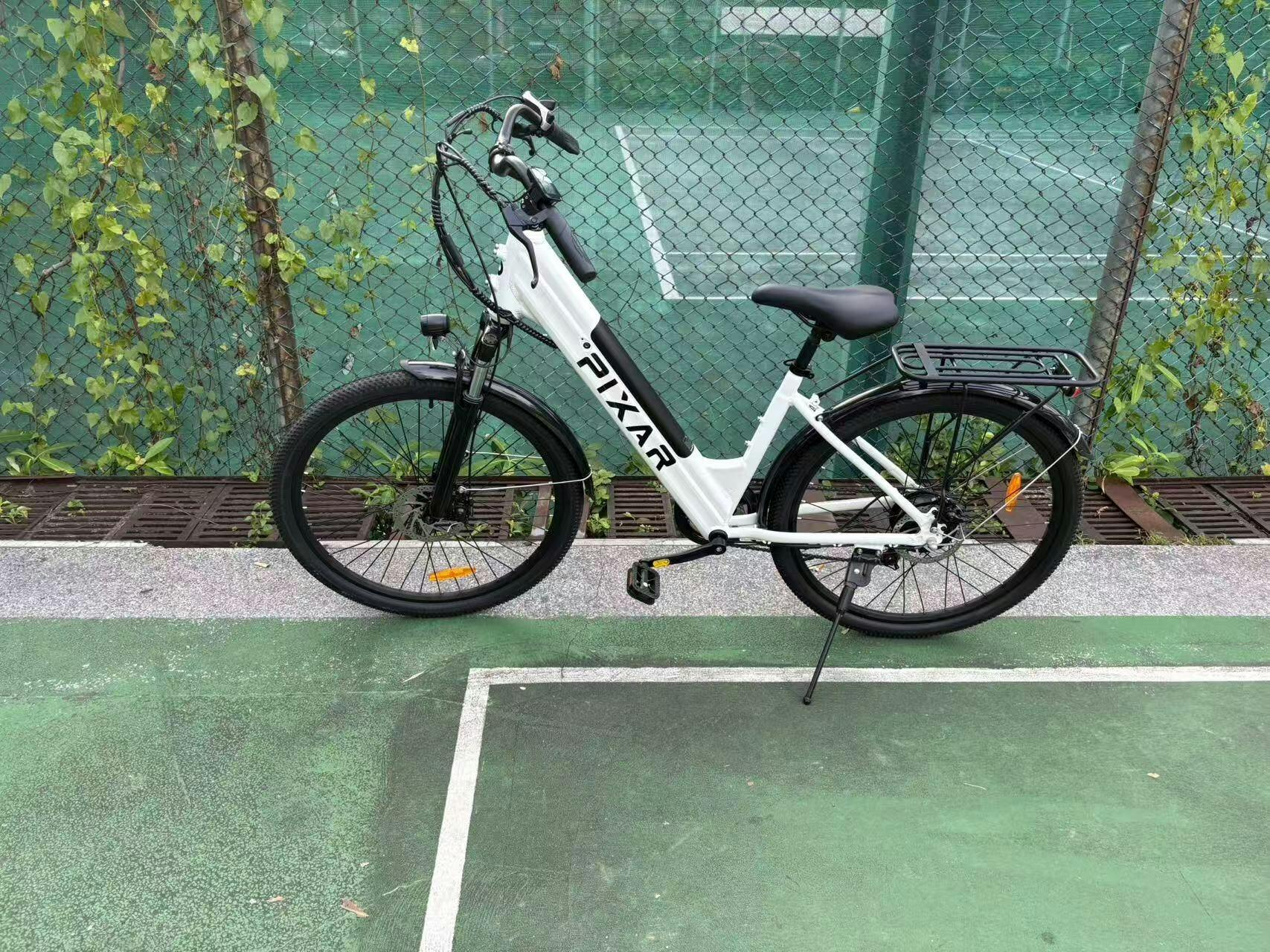

PIXAR Cruiser City Electric Bike
- PIXAR E-bike
- Specifications
- Frame
- Motor Control
- Components
-
Pedal Assist Range
120+ km -
Electric-Only Range
58 km -
Top Speed
25 km/h -
Dimensions
183*66*104 (cm) -
Max Load Capacity
250 kg -
Ebike Net Weight
29 kg -
Torque
45 Nm -
Battery
Samsung 36V 12.8Ah IPX6 Waterproof, CE Certified -
Battery Charging Time
4 - 5 hours -
Battery Weight
3.5 kg
-
Front Suspension
Aluminum Adjustable Shock Absorbers. -
Front Suspension
Travel Total Length 510mm, Travel 100mm. -
Handlebar
Riser Handlebar, Grip Length 104mm, Total Length 66cm -
Pedals
9/16", With Reflectors. -
Chain
1/2"*3/32"*118l, 21-Speed Indexing. -
Crankset
170mm Crank Arms, 48t Chainring.
-
Display
LCD Display With Usb Charging. -
Pas Levels
0-5 Pas. -
Throttle
Half-Twist Throttle / Optional Thumb Throttle. -
Maximum Output
48V23A With Temperature Control Protection. -
Motor
250W Peak Rear Hub Brushless Motor. -
Sensors
Speed Sensor. -
Freewheel
Shimano 7-Speed Indexing, 14-28T. -
Rear Derailleur
Shimano 14-28T. -
Charger
2A Smart Charger, UL Certified.
-
Rim
Alloy 26"1.5*13G*36H. -
Spokes
45# 12g*212mm, Compliant With En15194 Standard. -
Tire Brand
CST Tire. -
Tire Size
26"*2", 45psi. -
Inner Tube
26"*2", Valve Stem 35mm. -
Brake Levers
Aluminum Material (With Brake Priority Protection). -
Brakes
Front And Rear Mechanical Disc Brakes. -
Brake Rotors
180mm. -
Kickstand
Heavy-Duty Aluminum Kickstand.

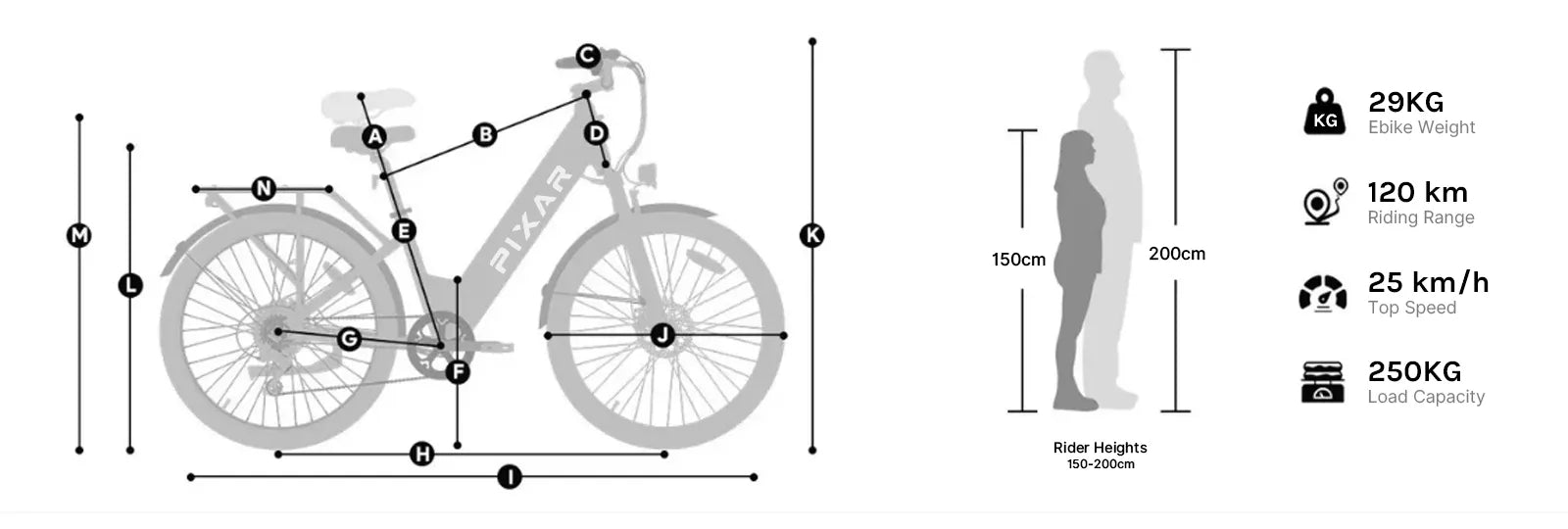

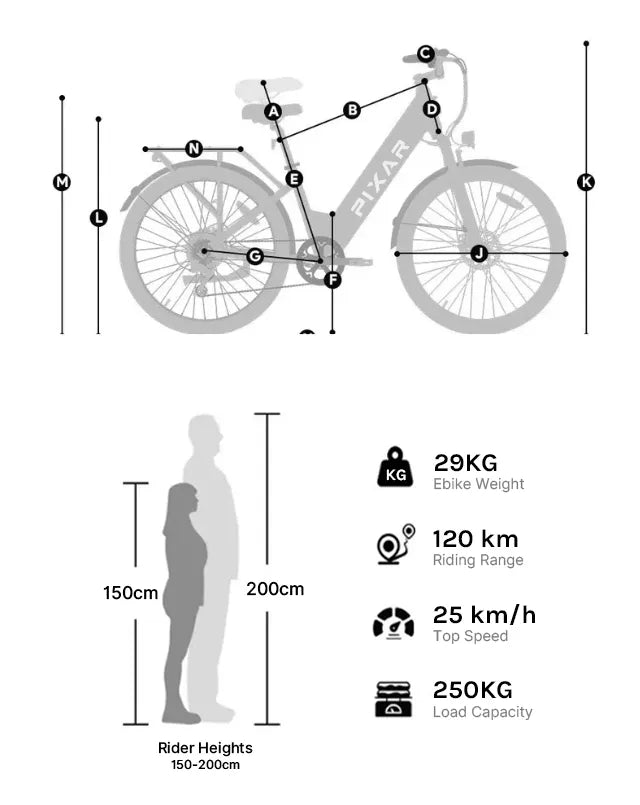

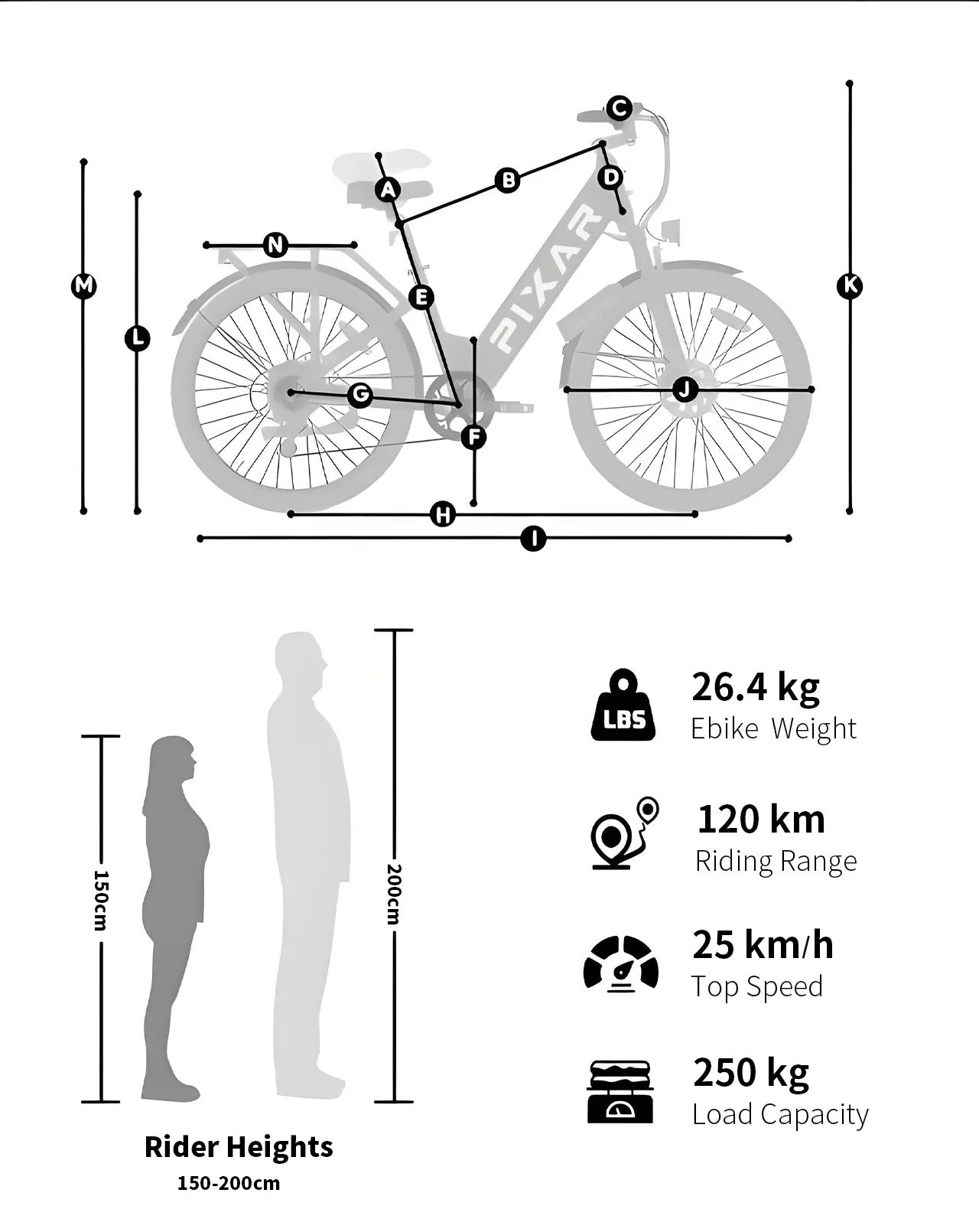

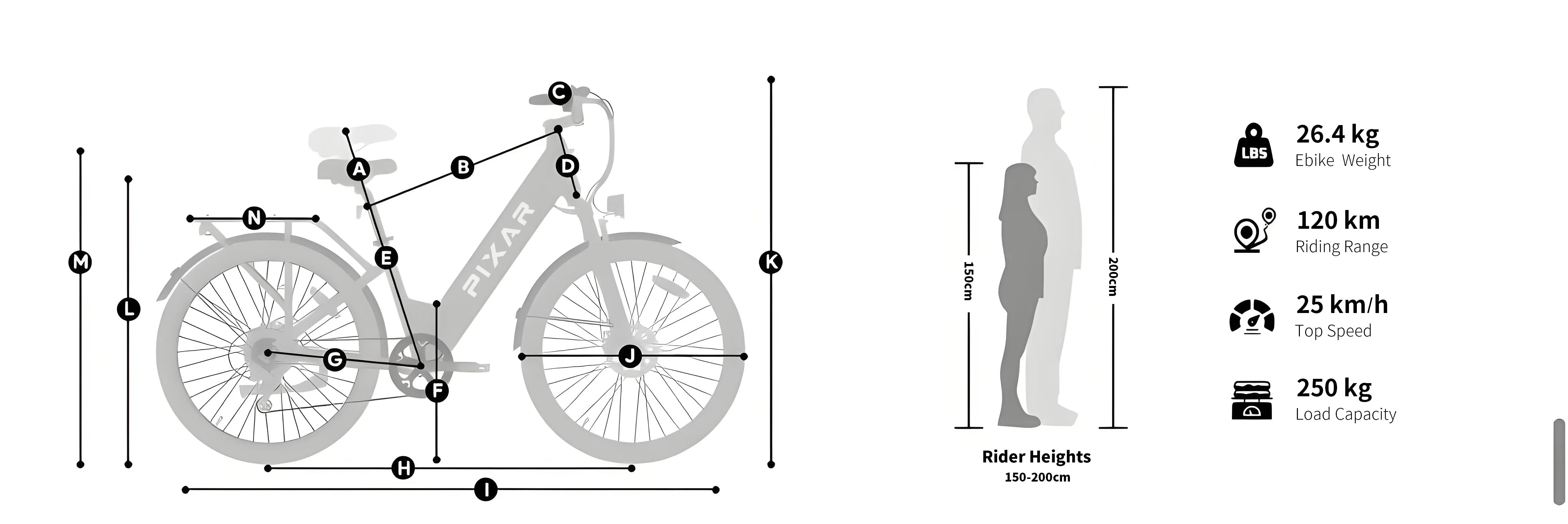

- Geometry

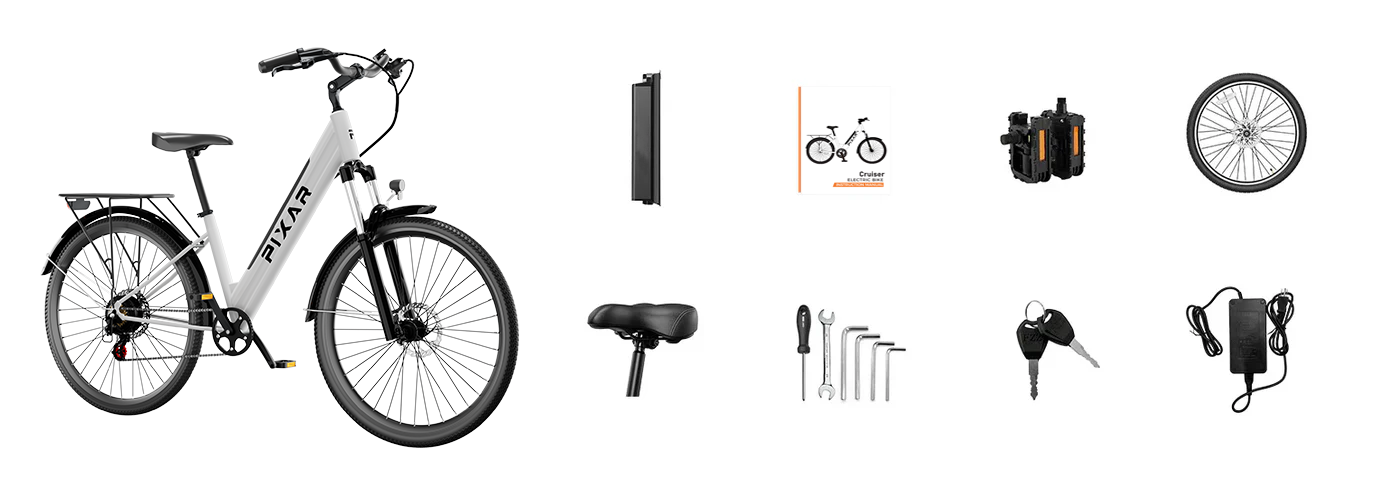

- What's in the box?

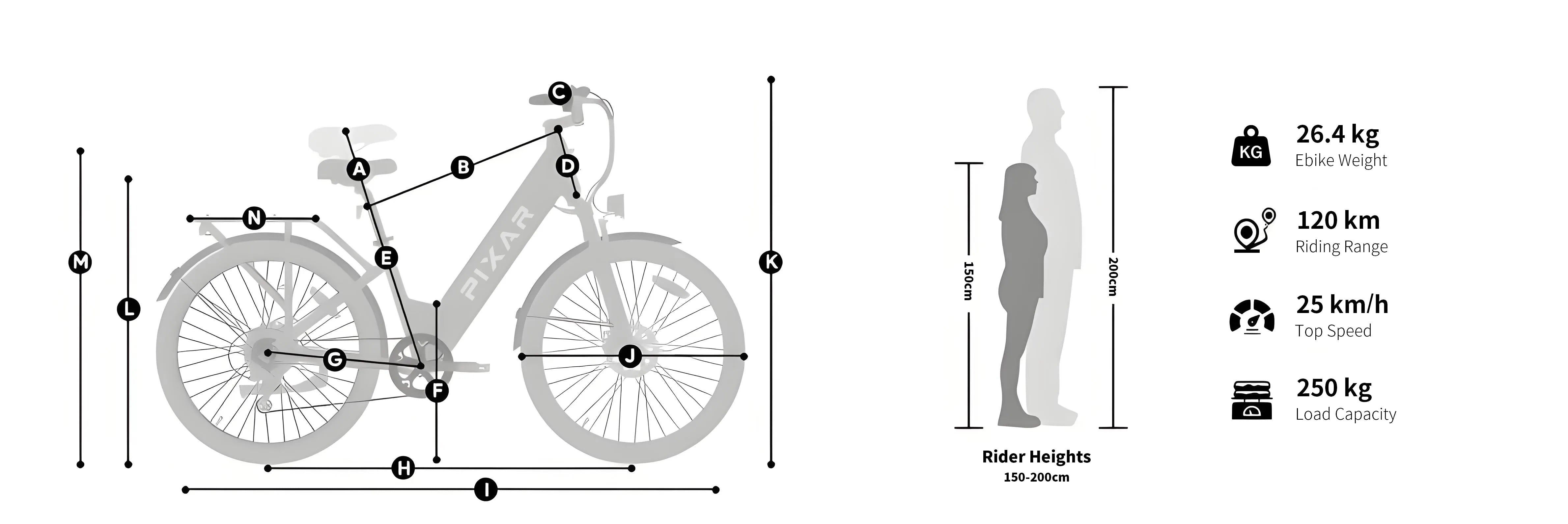

| Size | L(cm) | |
|---|---|---|
| A | Maximum Seat Height | 79 |
| B | Top Tube Length | 61 |
| C | Handlebar Length | 61 |
| D | Head Tube Length | 23 |
| E | Min Seat Height | 56 |
| F | Stand Height | 46 |
| G | Chain Stay Length | 46 |
| H | Wheelbase | 112 |
| I | Total Length | 168 |
| J | Wheel Diameter | 66 |
| K | Handlebar Height | 112 |
| L | Minimum Seat to Floor | 84 |
| M | Max Seat to Floor | 104 |
| N | Rear Rack Length | 36 |
-
Battery x1
-
User Manual x1
-
Pedals x2
-
Front Wheel x1
-
Seat x1
-
Toolkit x1
-
Keys x2
-
Charger x1
FAQ
What is a special discount?
We offer 150€ for military personnel, teachers, and doctors. Please send us your photo ID and once confirmed, we will offer you a special discount.
Pre-sales email：sales@pixarbikes.com
Where are the test rides located?
Our distribution addresses are all over European Union, in Germany, France, etc. Refer to the page for details: Shipping policy
Where is the location of the shipping warehouse?
Shipments for the European Union region are sent from Deutschland.
When will I receive the shipment after placing my order?
We usually dispatch the goods within one working days after receiving the order and you can usually receive the goods within 2-8 working days after placing the order. However, sometimes there may be some special circumstances such as logistic and transport problems, holidays or festivals, etc., the delivery may be delayed.
We will do our best to ensure that your order arrives on time and accurately, but we hope you understand that delays may occur in exceptional circumstances. If you have any questions or need assistance with the status of your order, please feel free to contact our customer service team and we will be happy to assist you.
What are the channels for shipment?
Usually DPD/Go Express/DHL, we may choose other shipping channels according to the situation in remote areas.
What should I do if I have an after-sales problem?
If you encounter any after-sales problems in the process of using our products, we will do our best to ensure that you get timely and effective solutions. You can send an email to our after-sales service mailbox support@pixarbikes.com (please describe problem in detail, with your order number and contact information), our after-sales team will process your email as soon as possible. We will give you a reply within one working day.
Whether the problem you encountered is about the product, delivery problems or other after-sales service problems, we will do our best to provide you with the most satisfactory solutions. Thank you for your trust and support!

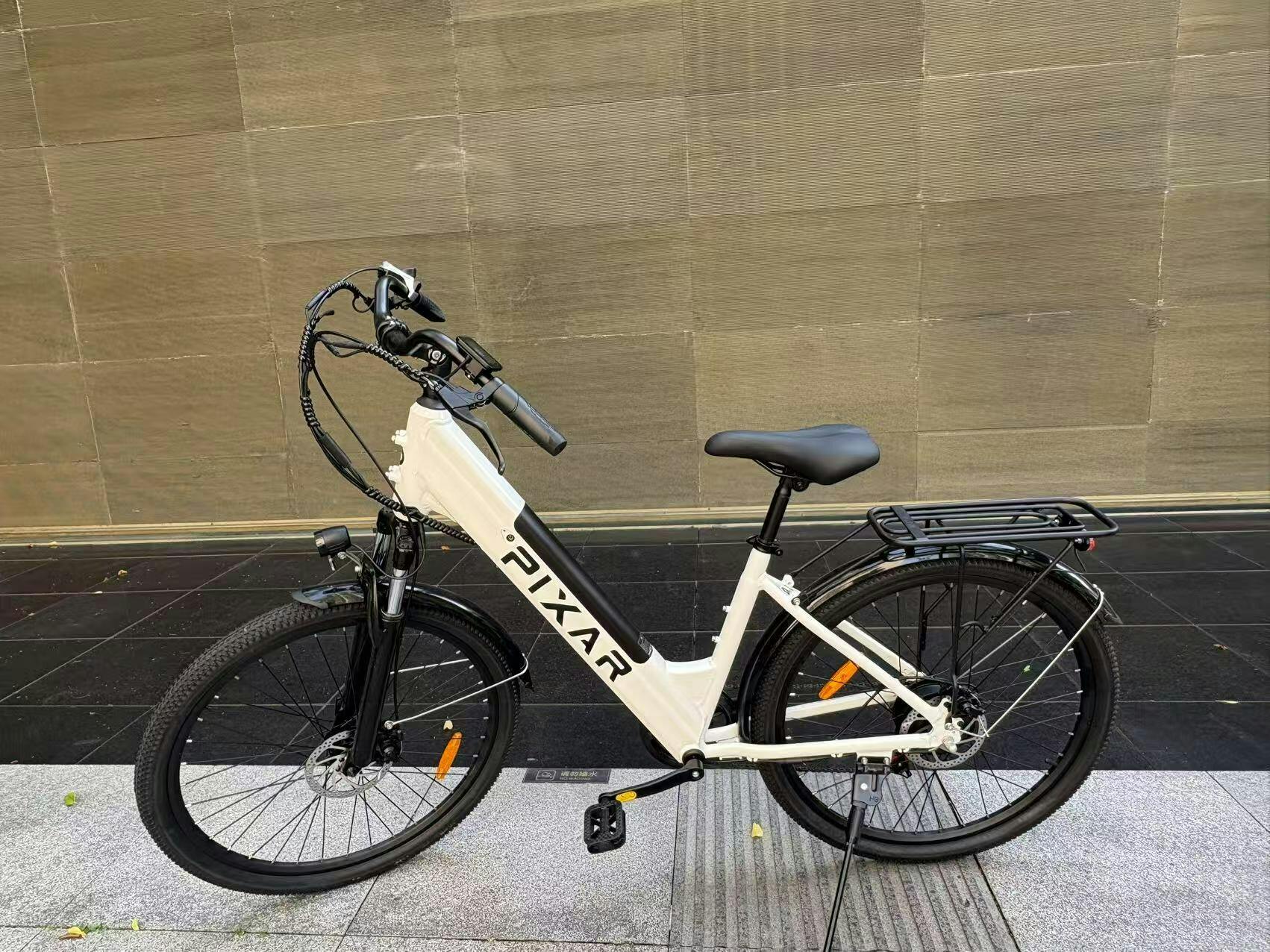

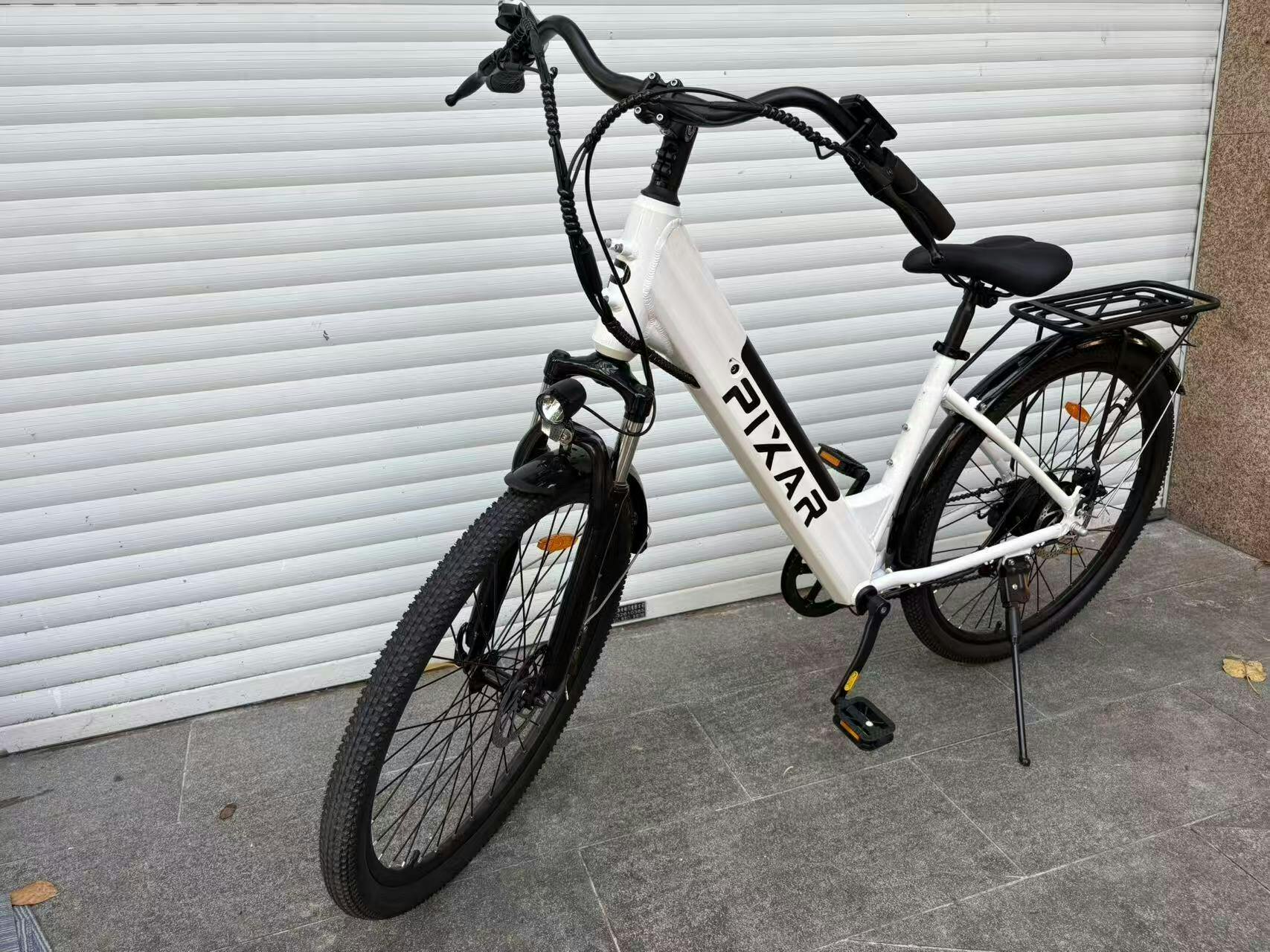

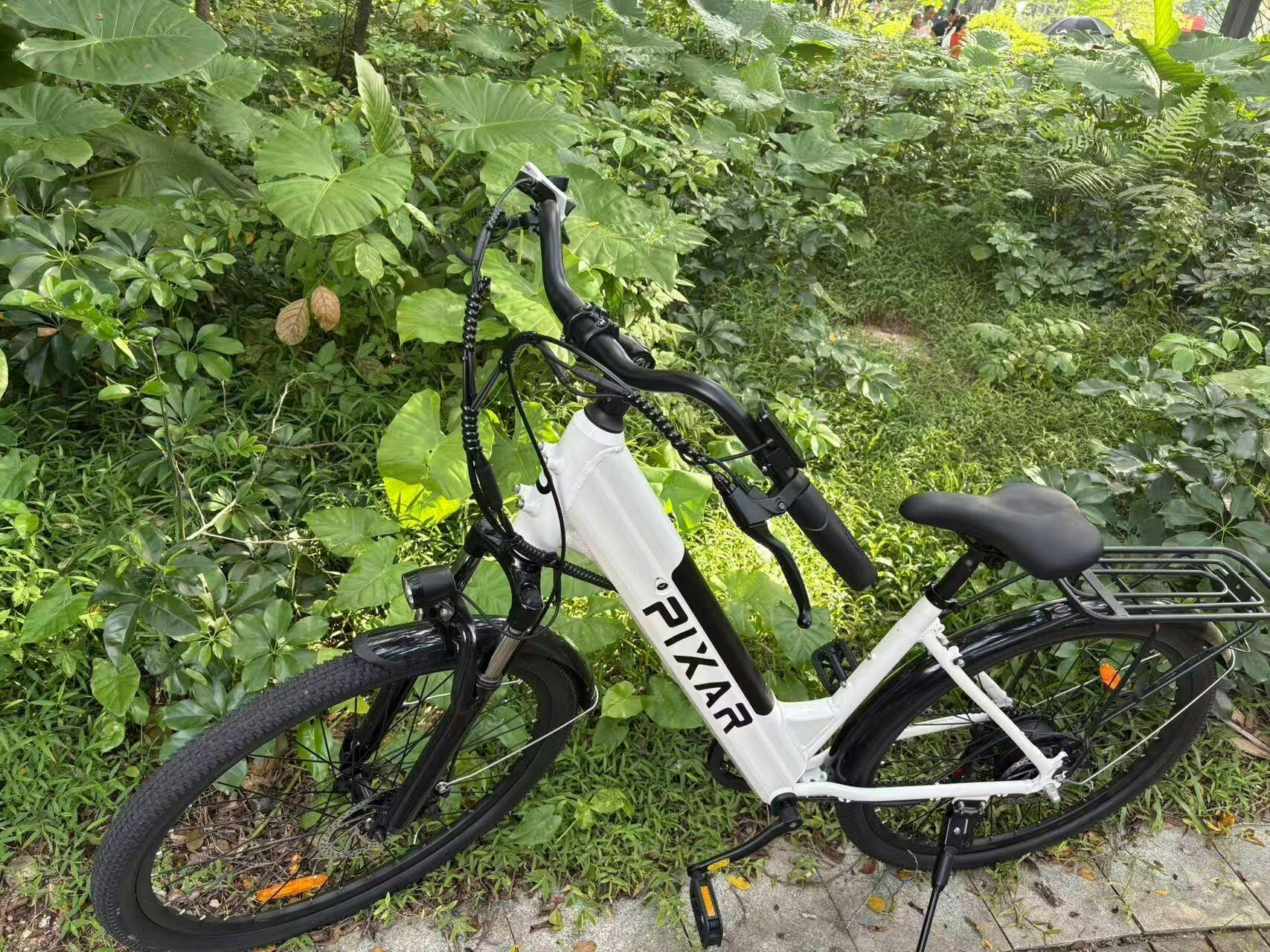

Seitdem ich dieses E-Bike habe, spare ich Zeit und Geld. Kein Stau mehr, keine Parkplatzsuche! Der Motor unterstützt sanft, und die Schaltung läuft reibungslos. 5 Sterne!
